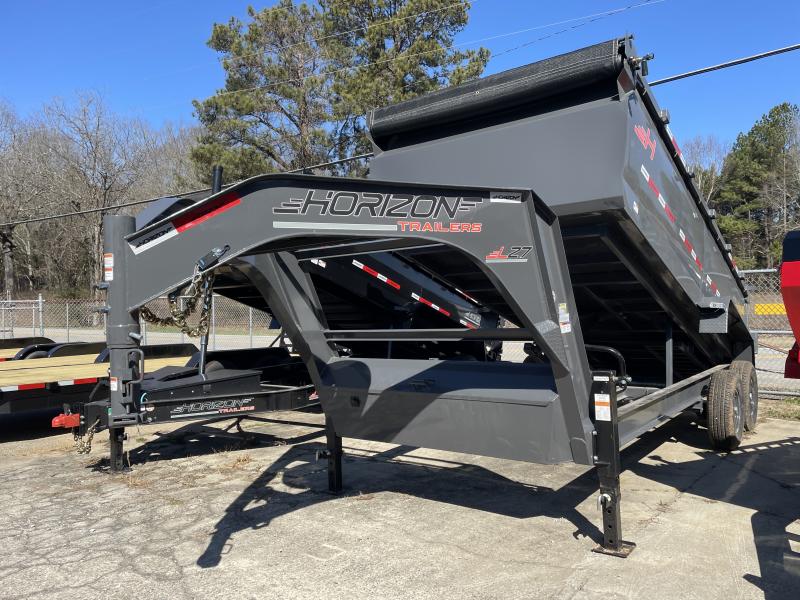

2025 Horizon Trailers 7x16 14k 42" Sides Gooseneck Dump Trailer

Description

GN LZ7 Heavy-Duty Dump Trailer - 14,000 lb GVWR - Premium Features & Specifications:
Key Features:
Heavy-Duty I-Beam Frame:
8" I-Beam (13 lbs/ft) main frame
10" Engineered I-Beam Neckboss
Mega Lockable Toolbox: Secure storage for battery and hydraulic pump.
Robust Toolbox Latch: Durable and reliable locking mechanism.
Versatile Ramp System:
Ramp pockets with 6' 4" slide-in 3" channel ramps (4,000 lbs wheel rating each).
3-Way Spreader Gate: Enhanced versatility for dumping.
Manual Tarp Kit: Protect your load from the elements.
Extra Marker Lights: Increased visibility for safer towing.
Weld-On Spare Tire Mount: Convenient spare tire storage.
Dimensions & Capacity:
Bed Width: 83 inches
Bed Height: 28 inches
Flooring: 9-gauge steel bed
Side Walls:
Height: 42"
Thickness: 12-gauge rounded steel
GVWR (Gross Vehicle Weight Rating): 14,000 lbs
Construction & Materials:
Top Rail: 2" x 3" x 11-gauge tubing
Stake Pockets: 1 5/8" x 3 5/8" (ID)
"J" Hooks: 3/8" round
Fenders: 14-gauge diamond plate steel
Hydraulic System:
Type: Hydraulic power up/power down
Pump: KTI 12V hydraulic pump
Controller: #13 with 14' control cable
Lift Cylinder:
Hoist with 5" x 16" single push cylinder (15,000 lbs capacity)
Hoist with 5" x 21" single push cylinder (15,000 lbs capacity) (options available)
Running Gear:
Axles: Tandem 7,000 lb Lippert electric brake auto-adjust EZ lube spring axles
Tires: ST235/80R16 10-ply radial tires
Bolt Pattern: 8 on 6.5"
Suspension: Spring suspension
Axle Warranty: 6-year Lippert spring axle warranty
Electrical & Lighting:
Battery: 1 Interstate 27 deep cycle battery
Charging System: 110V integrated trickle charger
Wiring Harness: All-weather 7-way RV wiring harness
Frame Wiring: Double insulated wiring harness

Variations: certain specifications may vary by model (e.g., dump angle, frame size).
The LZ7 14K 83" Hoist Dump Trailer is designed for heavy-duty tasks, offering a 14,000 lbs GVWR, premium powder coat finish, and customizable lengths (12', 14', 16'). With features like a robust hydraulic hoist, mega lockable toolbox, and 3-way spreader gate, it combines durability, functionality, and style.

With a 14,000 lbs GVWR and 7K Lippert axles, the LZ7 14K 83" Hoist Dump Trailer is perfect for heavy-duty hauling. Choose from three lengths and multiple side heights to customize your trailer. Add rugged features like a manual tarp kit, extra marker lights, and slide-in ramps for maximum efficiency.

The LZ7 14K Dump Trailer features an 8" I-Beam frame, a high-quality powder coat finish, and premium radial tires for enhanced durability. Its hydraulic hoist system offers a powerful 15,000 lbs lift capacity. Standard amenities like D-rings, integrated toolbox, and 3-way doors deliver unmatched convenience and reliability.
