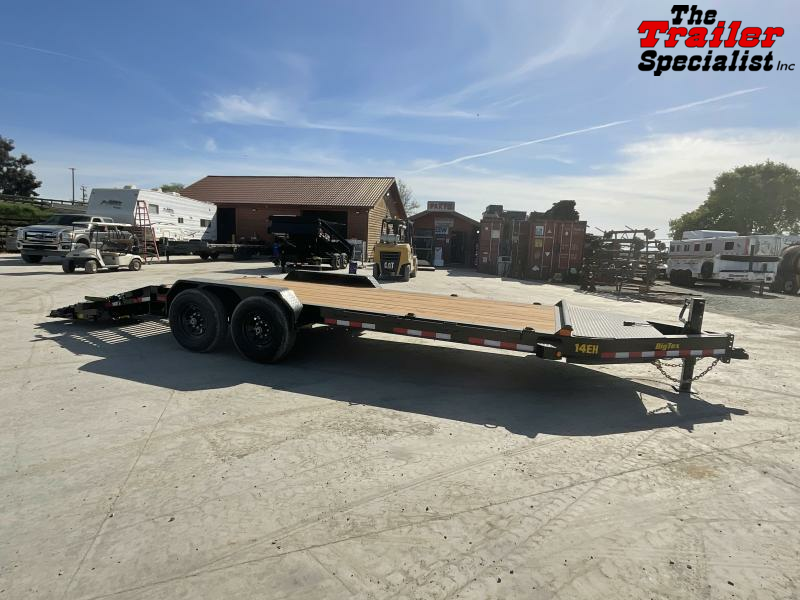

NEW 2025 Big Tex 14EH-20D3A-MR 7 x 20 15.4k GVW Equipment Trailer

Description

NEW 2025 Big Tex 14EH-20D3A-MR 7x20' 14k GVW Equipment Trailer!
*The 14EH Super Duty Tandem Axle Equipment Trailer from Big Tex has an 83-inch width, multiple length options, and a flush floor, providing versatility and exceptional value. 7,000-pound axles give the 14ETH added weight capacity for unmatched durability and strength.*
83" X 20' heavy duty tandem axle equipment
Empty Weight: 3,540 LBS
GVW: 15,400 LBS
Dovetail with Mega Ramps
Standard Specifications:
AXLE: (2) 7,000# EZ Lube w/Electric Brakes
JACK: 12,000# Drop Leg Jack-Side Wind
TIRE: ST235/80 R-16 Load Range E
FLOOR: APEX Fortified Lumber
FRAME: 8" I-Bean
WHEEL: 16" x 6"; Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 8" Seamless I-Beam
COUPLER: Adjustable 2-5/16" Demco EZ Latch
FENDERS: 9" x 72" GA Diamond Plate Double Square w/Back (Removable)
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3" Channel on 16" Centers
SAFETY CHAINS: 3/8" Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL: 3/16" Fabricated Front Stop Rail
THE 14EH ALSO COMES EQUIPPED WITH
* Adjustable 2-5/16" Demco EZ Latch Coupler
* Complete Break-A-Way System w/Charger
* ZipTrademark Breakaway Cable
* 12,000# Bolt-On Drop Leg Jack- Side Wind *Dual
Jacks on Gooseneck Model
* Mega-Sized Integrated Tongue Box with Lockable
Lid (Bumper Pull Only) * Lockable Toolbox Between
Risers on Goosneck Model
* Seamless I-Beam Tongue Integration (Bumperpull
Only)
* Stylish Fabricated Front Stop Rail (Bumperpull Only)
* Rubrail and Stake Pockets Along Sides
* (6) D-Rings to Secure Equipment
* Premium Brand 7,000#, Cambered Axles
* Forward Self-Adjusting (FSA) Electric Brakes on All
Hubs
* Radial Tires
* Double Broke Diamond Plate Fenders (Removable)
* Grommet Mount Sealed Lighting
* L.E.D. Lighting Package
* Sealed Modular Wiring Harness
* Convenient Side-Step to Access Deck
* 40" Cleated Dovetail
*
While we always strive for complete accuracy, please confirm options with one of our sales reps.
