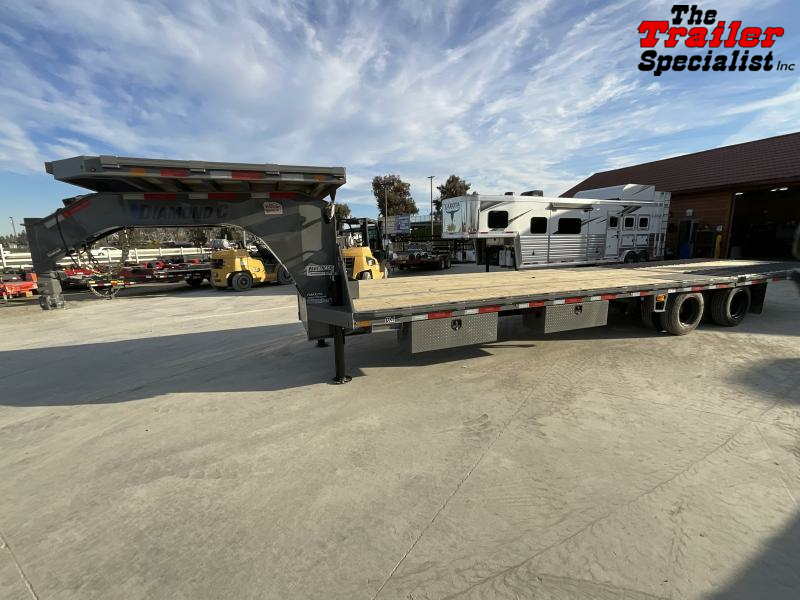

NEW 2024 Diamond C Trailers FMAX216L32X102HDT 102"X32' 40K GVW GN Equipment Trailer

Description

NEW 2024 Diamond C Trailers FMAX216L32X102HDT 102"X32' 40K GVW GN Equipment Trailer with hydraulic dovetail!
40,000 lb GVWR and up to 1,800 pounds lighter curb weight than the competition. Need we say more? #DOWORK
102" X 32' Gooseneck equipment trailer
Empty Weight: 9,6800 LBS
GVW: 40,000 LBS
Upgraded Features:
Pacesetter Edition
Dovetail: 12' fully automatic with 5 amp charger
Dovetail: with full steel runner with cleats
Jack: dual 20k hydraulic jacks
Standard Features
FRAME SIZE, L32X102
AXLE, 2 -16K ELEC/HYD DISC BRAKES
SUSPENSION, HEAVY DUTY ADJUSTABLE SUSPENSION
FRAME, ENG. BEAM W/3" I-BEAM XM ON 12" CENTERS (L32')
SWAY CONTROL PIPE, STANDARD
COUPLER, 40K SQUARE (3" BALL)
NECK, 12" ENGINEERED NECK
7' X 8' DECK ON THE NECK (WELDED)
SPARE MOUNT, CABLE WINCH (UNDER FRAME)(RETRACTABLE)
FLOOR, 2" TREATED FLOOR (L32')
DOVETAIL, 12' FULLY AUTOMATIC W/5 AMP CHARGER
DOVETAIL W/FULL STEEL RUNNER W/CLEATS
JACK, DUAL 20K HYDRAULIC JACKS
WINCH MOUNTING TRAY (GOOSENECK)
BATTERY - GROUP 27
SOLARPULSE CHARGING SYSTEM 7 WATT
NO EXTRA
STORAGE, FULL WIDTH CHAIN RACK, WELDED
STORAGE, 14" X 14" X 42" UNDER SLUNG BOX (1EA)
TIRES, ST215/75R17.5 DUAL, 18 PLY 8/275MM - RADIAL BLACK
SPARE, ST215/75R17.5 DUAL, 18 PLY 8/275MM - RADIAL BLACK
PAINT, CEMENT GRAY
LIGHTS, ALL LED
BOLT-ON LED FLOOD LIGHTS, 2000 LUMEN -1 PAIR
EXTRA CLEARANCE LIGHTS (4 PAIR)
DECALS, FMAX216
While we always strive for complete accuracy, please confirm specifications with one of our sales reps.
