NEW 2025 Big Tex Trailers 22GN-30D5A-MR 102"x25'x5' 23,900 GVW GN Equipment Trailer

Description

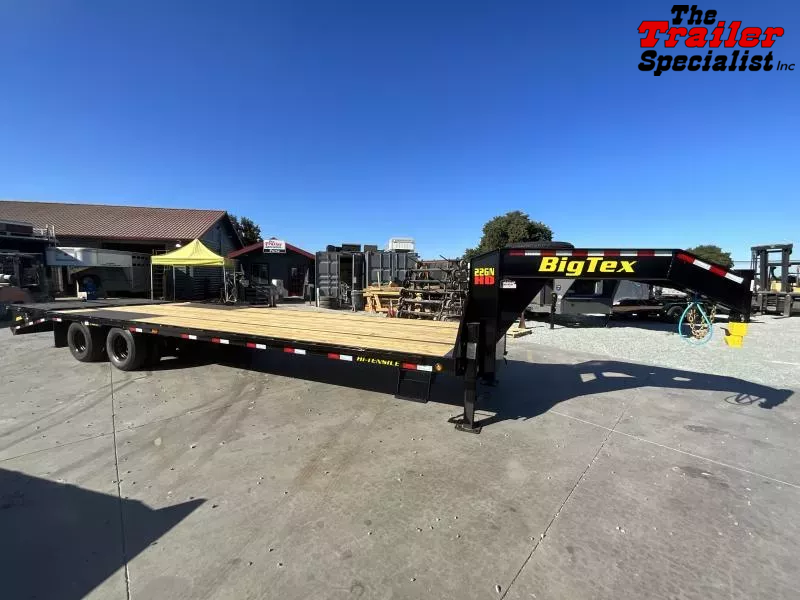

NEW 2025 Big Tex Trailers 22GN-30D5A-MR 102"x25'x5' 23,900 GVW GN Equipment Trailer!
Ideal for heavy construction and hotshotting, the 22GN Tandem Dual Flatbed Gooseneck Trailer from Big Tex Trailers is designed for professionals seeking a reliable and feature-rich trailer. Known for its ruggedness and durability, the 22GN has recently been updated with a Demco EZ Latch Gooseneck Coupler, Dual 2-Speed 50K Landing Gear, and an integrated Working Light Package, among other premium features. Discover the ultimate gooseneck trailer solution by exploring the full specs, features, and options below.
GVW: 23,900 LBS
Empty weight: 7,520
Standard Features:
Axle: 2- 10k dual wheel with electric brakes (oil bath)
Jack: dual 12k drop leg jacks (bolt on)
Neck: 12" I-beam
Tire: ST235/80R-16 load range E dual
Floor: 2" treated pine or douglas fir
Frame: 12" I-beam
Wheel: 16"x6"; black dual wheel 8 bolt
Finish: Superior quality finish is applied for a highly decorative and protective finish
Lights: LED DOT stop, tail, turn and clearance
Coupler: 2-5/16" demco EZ latch
Dovetail: 5 cleated dovetail with 5 double hinged, spring-assisted flip-over ramps
GVWR: 23,900
Elec plug: 7-way RV
Hitch type: GN
Side rails: 6" channel with rub rail, stake pockets and chain spools
Suspension: heavy duty 30,000 adjustable
Crossmembers: 3" channel
Finish: steel is cleaned to ensure a professional smooth finish
Safety chains: 3/8" grd. 70 with safety latch hook
GAWR: 10k
The 22GN also comes equipped with:
* 2-5/16" Demco EZ Latch Gooseneck
* Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
* 102" Overall Width
* Low Profile Bed, Pierced- Beam Frame Design
* Lockable Toolbox Between GN Uprights
* (2) Side Bed Steps & Handles
* 3/8" Heavy Duty Rub Rail
* Stake Pockets Along Sides, 24" On Center
* 1-1/4" Pipe Chain Spools Between Tie Down Pockets
* Premium Brand Axles
* Oil Bath Hubs
* Forward Self Adjusting Brakes
* Heavy Duty 30,000# Adjustable Suspension
* Torque Tube Standard on 28 (Flat Deck) & Longer
* Grommet Mount Sealed Lighting
* L.E.D. Lighting Package
* Sealed, Modular Wiring Harness
* Spare Tire Mount (Top of Neck)
* 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
* Complete Break-A-Way System w/Charger
* Zip Breakaway Cable
* Radial Tires
* Mudflaps
* Spare Tire & Wheel-Standard Equipped
While we always strive for complete accuracy, please confirm specifications with one of our sales reps .
