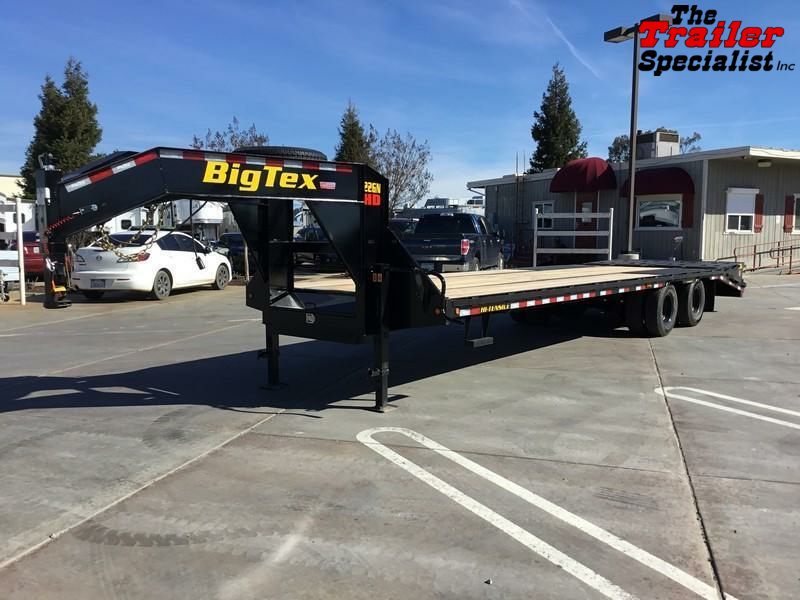

New 2022 Big Tex 22GN-25+5MR 102" x 25' + 5' 23900 GVW Flatbed Equipment Trailer

Description

New 2022 Big Tex 22GN-25+5MR Dovetail 102" x 25' + 5' 23900 GVW GN Trailer
Weight: 5800 lbs
GVWR: 23900 lbs
Payload Capacity: 18100 lbs

The 22GN from Big Tex is our durable gooseneck trailer equipped with 10K heavy-duty axles with Dexter Adjustable suspension. This unit features a low-profile pierced-beam frame, LED lights, adjustable dual jacks, a chain box and a crank-style adjustable coupler.

STANDARD SPECIFICATIONS:
AXLE: (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath)
JACK: Dual 12,000# Drop Leg Jacks (Bolted On)
NECK: 12" I-Beam, 16#
TIRE: ST235/80 R-16 Load Range E Dual
FLOOR: 2" Treated Pine or Douglas Fir*
FRAME: 12" I-Beam, 16# (19# on 28 Trailer & Longer)
WHEEL: 16" x 6"; Black Dual Wheel 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER: 2-5/16" Ball Adj. Square Crank Type
DOVETAIL: 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SIDE RAILS: 6" Channel w/Rub Rail, Stake Pockets, and Chain Spools
SUSPENSION: Heavy Duty 30,000# Adjustable
CROSSMEMBERS: 3" Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8" Grd. 70 w/Safety Latch Hook (2 each)

THE 22GN ALSO COMES EQUIPPED WITH:
2-5/16" Ball Adjustable Coupler- Square Crank Type
Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
102" Overall Width
Low Profile Bed, Pierced- Beam Frame Design
Lockable Toolbox Between GN Uprights
(2) Side Bed Steps & Handles
3/8" Heavy Duty Rub Rail
Stake Pockets Along Sides, 24" On Center
1-1/4" Pipe Chain Spools Between Tie Down Pockets
Dexter Brand Axles
Oil Bath Hubs
Forward Self Adjusting Brakes
Heavy Duty 30,000# Adjustable Suspension by Dexter Axle
Torque Tube Standard on 28 (Flat Deck) & Longer
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Sealed, Modular Wiring Harness
Spare Tire Mount (Top of Neck)
5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
Complete Break-A-Way System w/Charger
Zip Breakaway Cable
Radial Tires
Mudflaps
Spare Tire & Wheel-Standard Equipped

Financing is available!
While we always strive for complete accuracy, please confirm specifications with one of our sales reps.
