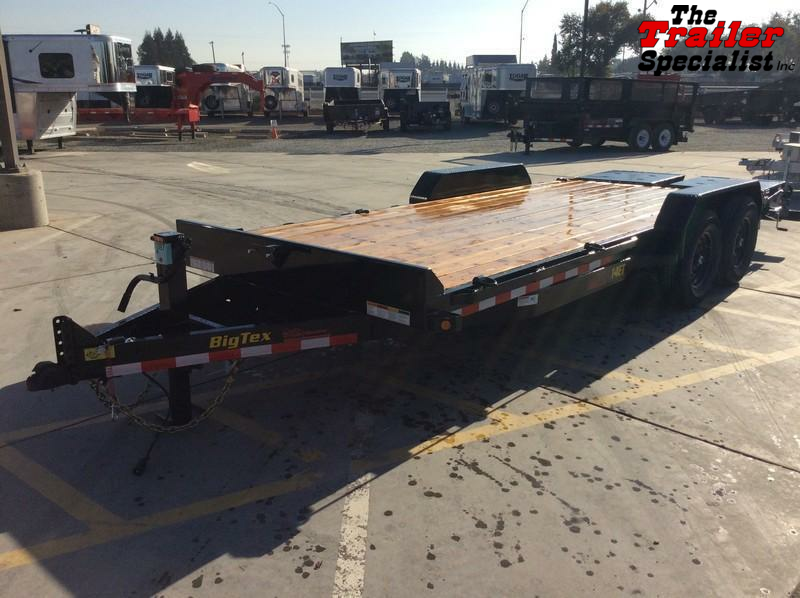

NEW 2024 Big Tex 14ET-20MR 7 x 20 14k GVW Equipment Trailer

Description

NEW 2022 Big Tex 14ET-20MR 7x20' 14k GVW Equipment Trailer!
*The 14ET Super Duty Tandem Axle Equipment Trailer from Big Tex has an 83-inch width, multiple length options, and a flush floor, providing versatility and exceptional value. 7,000-pound axles give the 14ET added weight capacity for unmatched durability and strength.*
83" X 20' heavy duty tandem axle equipment
Empty Weight: 2940 LBS
GVW: 14000 LBS
Dovetail Mega Ramps
Standard Specifications:
AXLE: (2) 7,000# EZ Lube w/Electric Brakes
JACK: 12,000# Drop Leg Jack-Side Wind
TIRE: ST235/80 R-16 Load Range E
FLOOR: 2" Treated Pine or Douglas Fir*
FRAME: 6" Channel
WHEEL: 16" x 6"; Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: 6" Channel Fold Back/Wrap, 10" I-Beam on GN
COUPLER: Adjustable 2-5/16" 18,000# Cast
FENDERS: 9" x 72" Double Broke Diamond Plate w/Back (Removable)
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3" Channel on 16" Centers
SAFETY CHAINS: 3/8" Grd. 70 w/Safety Latch Hook (2 ea)
FRONT STOP RAIL: 3/16" Fabricated Front Stop Rail
THE 14ET ALSO COMES EQUIPPED WITH:
Rubrail and Tie Down Pockets Along Sides
36" Cleated Dovetail
4 Tall Channel Knee Ramps
Adjustable 2-5/16" Demco EZ Latch Coupler
Fold Back/Wrap Tongue
12,000# Drop Leg Jack- Side Wind Against Bed
Fabricated Front Stop Rail
EZ Lube Hubs
Forward self-adjusting electric brakes on all hubs
Cambered Axles
Double Broke Diamond Plate Fenders (Removable)
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Sealed Modular Wiring Harness
Spare Tire Mount (Front)
Complete Break-A-Way System w/Charger
Zip Breakaway Cable
Radial Tires
While we always strive for complete accuracy, please confirm options with one of our sales reps.
