New 2022 Big Tex 14GX-16 Dump Trailer 7X16 14K

Stock #: B85862VIN #: 85862Year: 2022
Manufacturer: Big Tex TrailersWidth: 84" or 7'Length: 192" or 16'
Height: 24" or 2'Weight: 5000GVWR: 14000
Payload: 9000Color: BLACK# Axles: 2
URL: https://www.thetrailerspecialist.com/all-inventory?stock=B85862
Price$ 16,775.00

Description

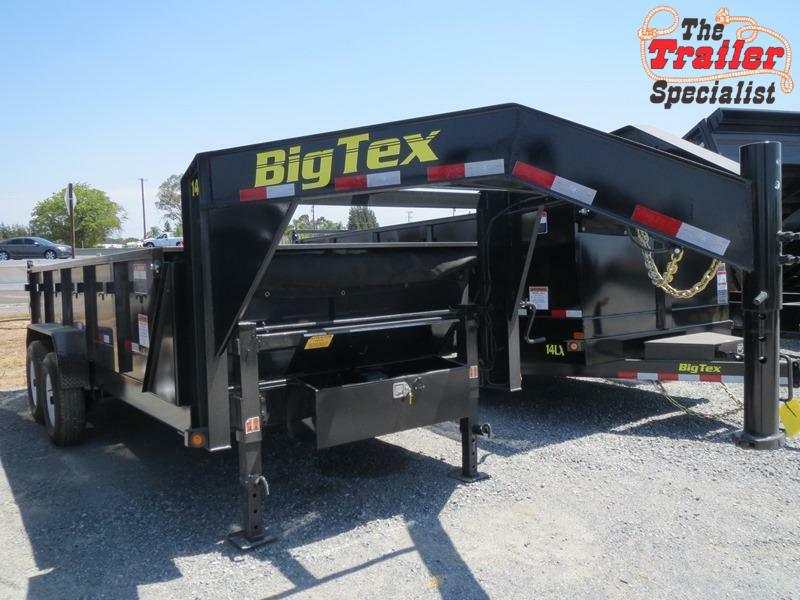

New Big Tex 14GX-16, 83" wide x 16' long tandem axle low profile extra wide dump trailer with a G.V.W.R. of 14000#. The 14GX Tandem Axle Low Profile Extra Wide Dump Trailer is a great way to gain the features of our popular 14LX in a gooseneck configuration.
This is a GN trailer with 24" 12g sides with formed channel supports for extra strength and 10 g floor, self-contained electric hydraulic scissor lift, 45 Degree Dump Angle, lockable pump and battery box mounted in front of bed, ROLL-UP TARP ASSEMBLY INCLUDED, dual 12K SW drop leg jacks, j hooks for tie down, and stake pockets (sides and front). Neck is 8" channel and frame is 8"x3" Tube. Tires are ST235/80R-16 Load Range E. Includes 7' ramps and 5/8in D-rings on inside of bed, LED lights for better visibility and maximum safety and encased in tube framing, and combo rear gate (spreader/double rear doors). Empty weight of 5000#, Payload of approximately 9000# with a capacity of 8.3 Cubic Yards. Call for more information! Financing available!
Structural Details:
-8'' x 3'' Tube Frame
-3'' Channel Bed Crossmembers
-Tubing Top Rail
-10'' I-Beam Neck
-10 Ga. Floor
-24'', 12 Ga. Sides w/Formed Channel Supports
-Extra Wide for Increased Payload Capacity
-3-Way Combo Gate
-Diamond Plate Fenders
-3-Year Structural Warranty
Where the Rubber Meets the Road:
-Premium Dexter EZ Lube Cambered 7,000# Axles
-NEV-R-ADJUST Electric Brakes On All Four Hubs
-ST 235/80 R16 Radial Tires
-Complete Break-A-Way System w/Charge Line
More Standard Features:
-Crank Style Tarp and Tarp Shroud
-Fully Self Contained Electric/Hydraulic Scissor Lift (For Even Lifting)- Power Up/Power Down Hoist- 45 Degree Dump Angle- Recessed Lockable Pump & Battery Box Mounted in Front of Bed- Interstate Battery
- 110V / 5A Onboard Battery Charger w/ Overcharge Protection
- 3-Position Adjustable Cast Coupler or Pintle Ring
- Protected Wiring
- All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape
- 4-5/8'' D-Rings Inside Bed
- Side Stake Pockets On Each Upright
- J-Hooks for Tie Downs
- Spare Tire Mount
- Safety Chains Attached w/Cold Rolled Eyelets
- Automotive Grade Highly Decorative and Protective Finish
Please note this trailer may have black or grey rims, not white as pictured
Available Lengths:
-12'
-14'
-16'
Optional Add-Ons:
-3' or 4' Solid Sheet Metal Sides
-Solar Charger
-Wireless Dump Remote
-24'' Expanded Metal or Smooth Steel "Modular" Side Extensions
-Jack Upgrade (From 7k to 12k)
-7' Slide in Ramps
