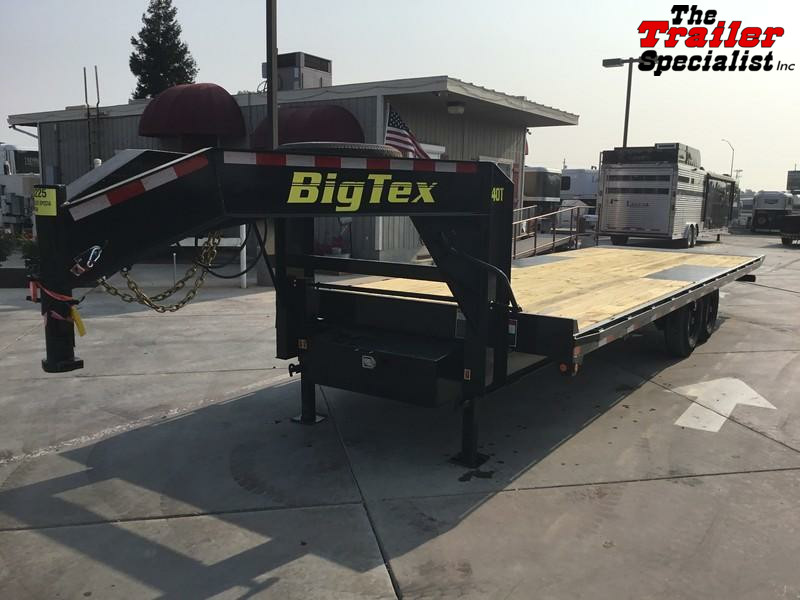

New 2023 Big Tex 14OT-24 8.5' x 24' 14k GVW Over-The-Axle Goosneeck Tilt Equipment Trailer

Description

New 2020 Big Tex 14OT-24GN 8.5' x 24' 14000 GVW Over-The-Axle Gooseneck Tilt Equipment Trailer!
The 14OT heavy-duty over-the-axle tilt trailer is designed with a scissor-style hydraulic hoist, providing more load stability and energy efficiency than single-ram systems and less maintenance and upkeep than dual-ram systems. Optimized for low-profile equipment, the 14OT has a knife-edge at the rear of the bed to provide a smooth transition while loading and unloading.
Weight: 5228 lbs
GVWR: 14000 lbs
Payload Capacity: 8772 lbs
SPECIFICATIONS:
AXLE: (2) 7,000# EZ Lube w/Electric Brakes
JACK: 1Dual 12,000# Drop Leg - Side Wind
TIRE: ST235/80 R-16 Load Range E
FLOOR: 2" Treated Wood
FRAME: 8" I-Beam, 10#
WHEEL: 16" x 6"; Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: Integral w/ Frame
COUPLER: 2-5/16" Round Adj. Pin (25K)
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SIDE RAILS: 6" x 2" x 1/8" Rectangular Tubing w/Stake Pockets & Rubrail on Both Sides
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3" Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish
SAFETY CHAINS: 3/8" Grd. 70 w/Safety Latch Hook (2 each)
THE 14OT ALSO COMES EQUIPPED WITH:
Adjustable Cast 2-5/16" Demco EZ Latch Coupler
Round Adjustable Pin 2-5/16"
12" I-Beam Frame w/Integrated Tongue
12,000# Drop-Leg Jack, Top Wind
*Dual Jacks on Gooseneck Model
Lockable Pump & Battery Box Mounted in Front of Bed
Rubrail and Stake Pockets Along Sides
Self Contained Electric/Hydraulic Scissor Hoist
Power Up/Power Down Hydraulic Pump
12V Interstate Deep Cycle Battery
110V On-Board Battery Charger (5 Amp)
Dexter Brand Axles
Cambered Axles w/ EZ Lube Hubs
Nev-R-Adjust Electric Brakes on All Hubs
L.E.D. Lighting Package
Sealed Modular Wiring Harness
Spare Tire Mount (In Tongue Area)
Complete Break-A-Way System w/Charger
Zip Break-A-Way Cable
Radial Tires
Recessed Winch Plate at Front of Deck
Rear Diamond Plate Knife Edge w/Collapsable Bumper
Financing Available!
While we always strive for complete accuracy, please confirm specifications with one of our sales reps .
