Stock #: B13132 | VIN #: 16V3F3321R6313132 | Year: 2024 |
Manufacturer: Big Tex Trailers | Width: 102" or 8' 6" | Length: 300" or 25' |
Weight: 5075 | GVWR: 15900 | Payload: 10825 |
Color: BLACK | # Axles: 2 | |
URL: https://www.thetrailerspecialist.com/all-inventory?stock=B13132 |
Price | $ 13,575.00 |

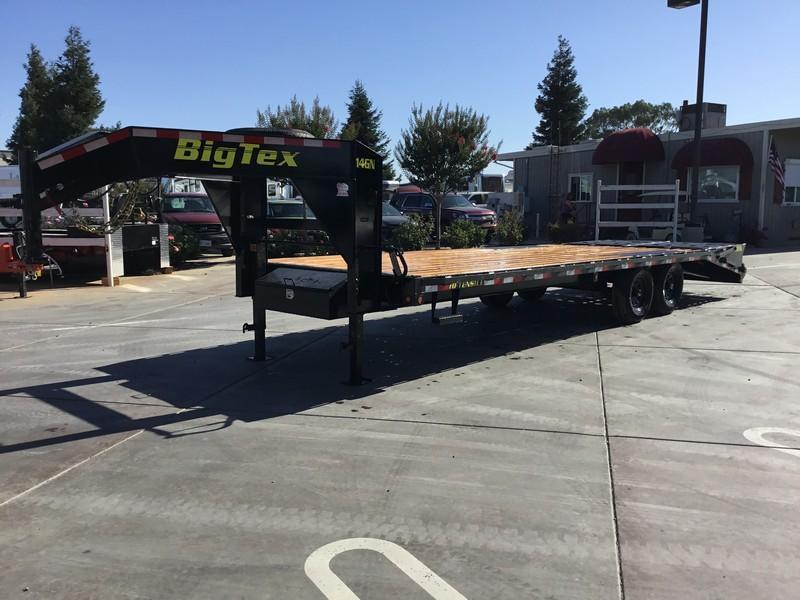

NEW 2024 Big Tex 14GN-20+5MR 102" x 20' + 5' 15,900 GVW Equipment Trailer!
The 14GN from Big Tex Trailers is our medium-duty, single-wheel gooseneck. This model combines many of unique Big Tex features-low-profile decks, LED lights, treated floor, dual jacks and an adjustable coupler-providing a professional-grade trailer that delivers for an exceptional value.
102" X 20' + 5' single wheel tandem axle gn equipment trailer
Empty Weight: 5,075 lbs
GVWR: 15,900 lbs Dovetail Mega ramps
STANDARD SPECIFICATIONS:
AXLE: (2) 7,000# EZ Lube w/Electric Brakes
JACK: Dual 12,000# Drop Leg Side Wind (Bolted On)
NECK: 12" I-Beam, 14#
TIRE: ST235/80 R-16 Load Range E
FLOOR: 2" Treated Pine or Douglas Fir*
FRAME: 12" I-Beam, 14#
WHEEL: 16" x 6"; Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
COUPLER: 2-5/16" Ball Adjustable Pipe
DOVETAIL: 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
ELEC. PLUG: 7-Way RV
HITCH TYPE: Gooseneck
SIDE RAILS: 5" Channel w/Rub Rail, Stake Pockets, and Chain Spools
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3" Channel
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8" Grd. 70 w/Safety Latch Hook (2 each)
THE 14GN ALSO COMES EQUIPPED WITH:
2-5/16" Ball Adjustable Pipe Coupler
Dual 12,000# Drop Leg Jacks (Bolted on) w/Greaseable Handle
102" Overall Width
Low Profile Bed, Pierced- Beam Frame
Lockable Toolbox Between GN Uprights
(2) Side Bed Steps & Handles
3/8" Heavy Duty Rub Rail
Stake Pockets Along Sides, 24" On Center
1-1/4" Pipe Chain Spools Between Stake Pockets
EZ Lube Hubs
Dexter Brand Axles
Nev-R-Adjust Electric Brakes on All Hubs
Cambered Axles
Grommet Mount Sealed Lighting
L.E.D. Lighting Package
Sealed, Modular Wiring Harness
5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
Complete Break-A-Way System w/Charger
Spare Tire Mount (Top of Neck)
Radial Tires
Zip Breakaway Cable
Spare Tire & Wheel - Standard Equipped
While we always strive for complete accuracy, please confirm specifications with one of our sales reps .
