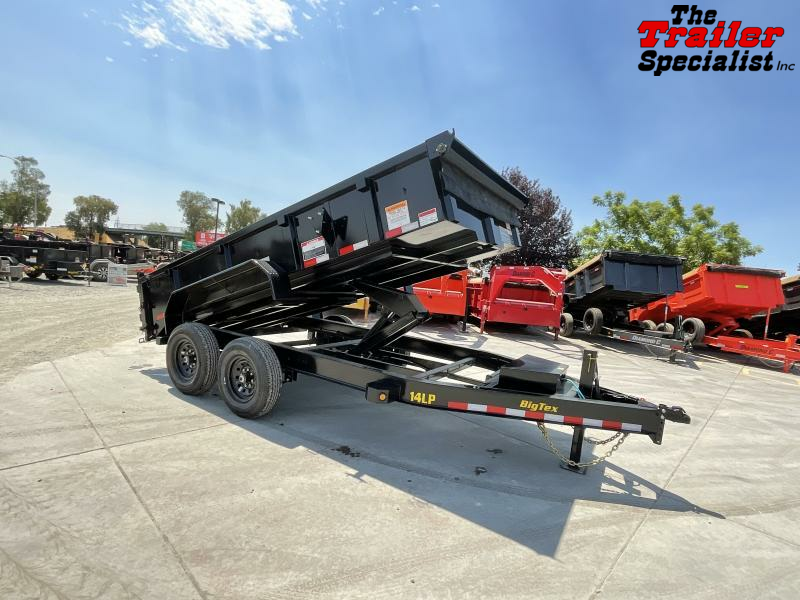

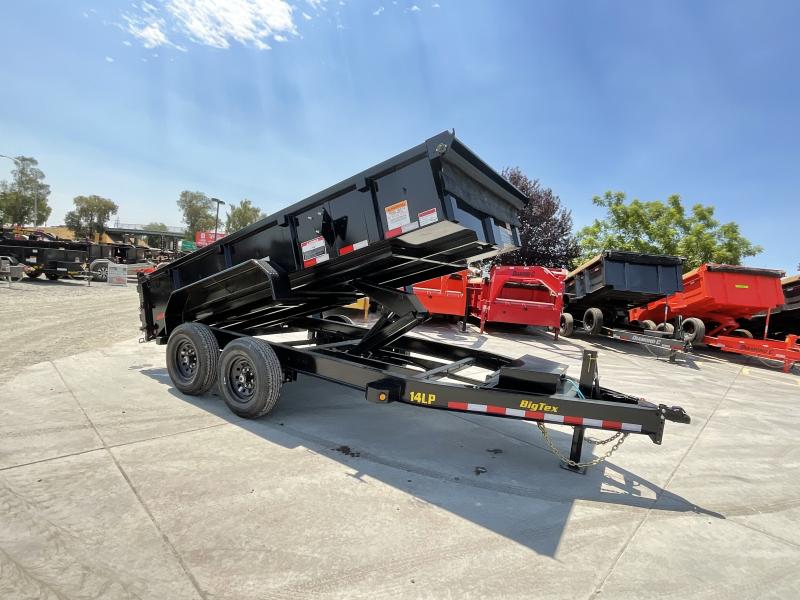

NEW 2024 Big Tex Trailers 14LP-14 2' Sides 7' x 14' 14k GVW Dump Trailer

Description

NEW 2024 Big Tex Trailers 14LP-14 2' Sides 7' x 14' 14000 GVW Dump Trailer!
Introducing The 14LP Low Profile Heavy Duty Dump Trailer from Big Tex Trailers offers ultra-low profile deck height to make loading and unloading easier than ever. Designed with the user in mind, this unit has an 8-inch I-beam frame.
Weight: 4,351 LBS
GVWR: 14,000 LBS
6' slide in ramps
STANDARD SPECIFICATIONS:
AXLE(2): 7,000# Drop Axles w/ EZ Lube Hubs & Elec. Brakes
JACK: 12,000# Side Wind Drop Leg
TIRE: ST235/80 R-16 Load Range E
FLOOR: 10 Gauge Smooth Steel
WHEEL: 16" x 6"; HD Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: Integral with Frame (8" I-Beam, 10#)
COUPLER: Adjustable 2-5/16" 18,000# Demco EZ Latch
FENDERS: 9" x 72" 14 Ga.Diamond Plate Double Square Broke
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
MAIN FRAME: 8" I-Beam, 10#
SUSPENSION: Multi-Leaf Spring w/Equalizer
BED TOP RAIL: 2" x 2" Square Tubing
FINISH (Prep): Steel is Cleaned to Ensure a Professional Smooth Finish.
SAFETY CHAINS: 3/8" Grd. 70 w/Safety Latch Hook (2 each)
DUMP BODY SIDES: 24" Tall Sides (10 Gauge)
DUMP BODY CROSSMEMBERS: 3" Channel, 16" Centers
THE 14LP ALSO COMES EQUIPPED WITH:
* Adjustable 2-5/16" Demco EZ Latch Coupler
* 8" I-Beam Frame w/ Integrated Tongue
* 12,000# Top Wind Drop-Leg Jack
* Lockable Pump & Battery Box Mounted in Front of
Bed
* 24" Tall, 12 Gauge Sides w/Formed Channel
Supports
* 10 Gauge Steel Floor & Sides
* Fully Formed Tarp Shroud on Front
* Crank Style Roll Tarp- Standard Equipped
* Tarp Rod Included to Secure Tarp on Rear
* J-Hooks on Sides & Rear for Tarp Control
* Stake Pockets Along Sides
* Self Contained Electric/Hydraulic Scissor Hoist
* Power Up/Power Down & Gravity Down
* 12V Interstate Deep Cycle Battery
* 110V On-Board Battery Charger (5 Amp)
* Premium Brand Axles
* Cambered Axles w/ Quick Lubricating Hubs
* Forward Self-Adjusting Electric Brakes on All Hubs
* Grommet Mount Sealed Lighting
* L.E.D. Lighting Package
* Sealed, Modular Wiring Harness
* Complete Break-A-Way System
* ZipTrademark Breakaway Cable
* Diamond Plate Fenders
* 3" x 2" Rectangular Tubing Top Rail on Dump Bed
* Combo Gate (Barn Doors & Spreader Gate)
* Rear Stabilizer Stands
* (4) 1/2" D-Rings Inside Bed to Secure Equipment
* Spare Tire Mount
* Radial Tires
While we always strive for complete accuracy, please confirm specifications with one of our sales reps .
