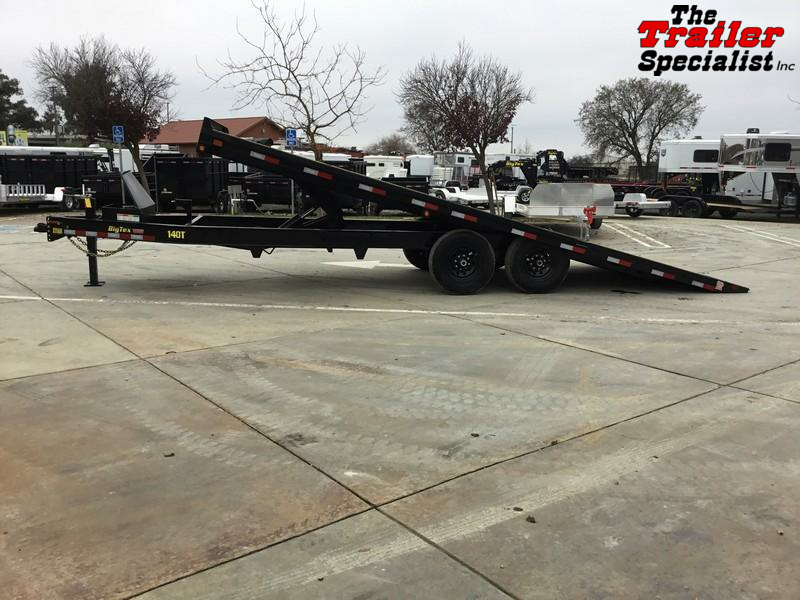

New 2025 Big Tex 14OT-22 102X22 14K GVW Tilt Deck Over Equipment Trailer

Description

New 2025 Big Tex 14OT-22 102X22' 14K GVW Tilt Deck Over Equipment Trailer!
The 14OT-22 heavy-duty over-the-axle tilt trailer is designed with a scissor-style hydraulic hoist, providing more load stability & energy efficiency than single-ram systems and less maintenance and upkeep than dual-ram systems. Optimized for low-profile equipment, the 14OT has a knife-edge at the rear of the bed to provide a smooth transition while loading and unloading.
102" wide x 22' long
GVW: 14,000 LBS
Empty Weight: 4,799 LBS
2 Electric brakes
SPECIFICATIONS:
AXLE: (2) 7,000# EZ Lube w/Electric Brakes
JACK: 12,000# Drop Leg Jack (Top Wind)
FLOOR: 2" Treated Pine or Douglas Fir*
FRAME: 8" I-Beam, 10# (13# on 26 Model)
WHEEL: 16" x 6"; Heavy Black Mod 8 Bolt
FINISH: Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
LIGHTS: L.E.D. D.O.T. Stop, Tail, Turn & Clearance
TONGUE: Integral w/ Frame
COUPLER: Adjustable Cast 2-5/16"
G.V.W.R.: 14,000#
TOP RAIL: None
ELEC. PLUG: 7-Way RV
HITCH TYPE: Bumper Pull
SIDE RAILS: 6" x 2" x 1/8" Rectangular Tubing w/Stake Pockets & Rubrail on Both Sides
SUSPENSION: Multi-Leaf Slipper Spring w/Equalizer
CROSSMEMBERS: 3" Channel
FINISH: (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
SAFETY CHAINS: 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. :(Ea. Axle) 7,000#
ALSO COMES EQUIPPED WITH:
* Adjustable Cast 2-5/16" Demco EZ Latch Coupler
* Adjustable Cast 2-5/16" Coupler, * Round Adjustable Pin 2-5/16" on Gooseneck Model
* 8" I-Beam Frame w/Integrated Tongue
* 12,000# Drop-Leg Jack, Top Wind
* *Dual Jacks on Gooseneck Model
* Lockable Pump & Battery Box Mounted in Front of Bed
* Rubrail and Stake Pockets Along Sides
* Self Contained Electric/Hydraulic Scissor Hoist
* Power Up/Power Down Hydraulic Pump
* 12V Interstate Deep Cycle Battery
* 110V On-Board Battery Charger (5 Amp)
* Premium Brand Axles
* Cambered Axles w/ Quick Lubricating Hubs
* Forward Self Adjusting Electric Brakes
* L.E.D. Lighting Package
* Sealed Modular Wiring Harness
* Spare Tire Mount (In Tongue Area)
* Complete Break-A-Way System w/Charger
* Zip Break-A-Way Cable
* Radial Tires
* Recessed Winch Plate at Front of Deck
* Rear Diamond Plate Knife Edge w/ Collapsible Bumper
While we always strive for complete accuracy, please confirm specifications with one of our sales reps.
