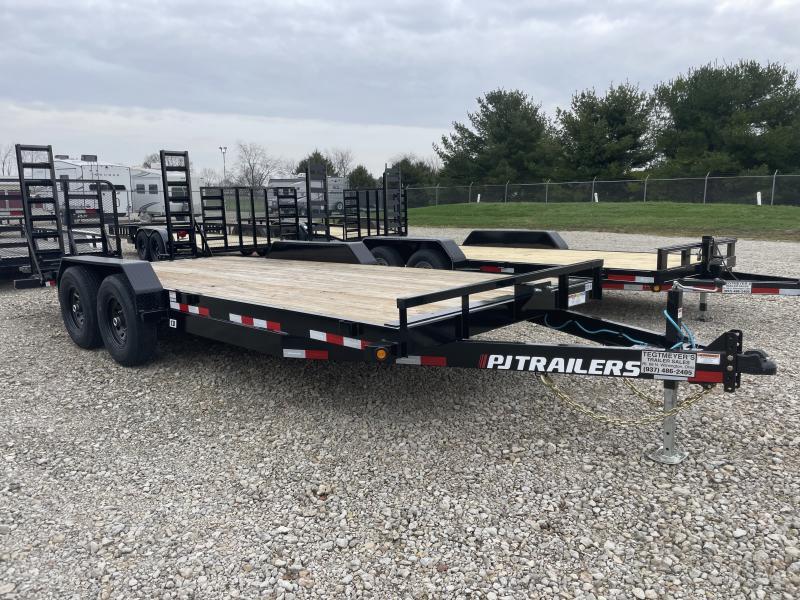

PJ Trailers 20' Equipment Trailer w/ Stand up Ramps

Description

cd: 6" Channel Equipment
j: BP 2 5/16" Adjustable- Demco EZ-Latch
20: 20ft
72bs: 2 - 7,000# Electric / Spring
b: 32" Dovetail w/ Fold-up Ramps
k: Black Powder Coat
INTERNET PRICES ARE CASH OR OHIO CHECK.
Internet price does not include credit card use
Financing you must be pre approved ( apply on line ) and an appointment is required
While we strive to represent our trailers with accuracy, the picture may not be the exact trailer shown. The picture could be a stock photo without the exact options. Please call to confirm details of the trailer.
CAR HAULER & EQUIPMENT
Car haulers and equipment trailers are designed with lower deck heights and are adapted for safe and easy vehicle transport. With super-wide deck options and drive-over or removable fenders available, these trailers accommodate a wide variety of cars, tractors, buggies, and more. Carrying capacities range from 4,500 to over 17,000 pounds.
QUEST SERIES
Proven PJ Quality. Exceptional Value.
The 6" Channel Equipment Trailer (CD) combines enhanced functionality with uncompromised durability. Built with a sturdy 6-inch channel frame and tongue, it offers superior strength and longevity. Reliable cargo securement is assured with six standard stake pockets, while the adjustable coupler ensures a perfect match between your truck hitch. Fast and efficient loading is achieved with a 32" wood-filled dovetail and 5' fold-up ramps, and the removable fenders provide extra width clearance for wider equipment.
Standard Features
Trailer Specs
Dimensions
Lengths: 18', 20', 22'
Deck Width: 83"
Deck Height: 25"
Weight Ratings
GVWR: 14,000 lbs.
GAWR: 7,000 lb. x (2) G.A.W.R.
Finish
Type: Powdercoat
Prep: Acid Wash, Sandblast
Colors: Black, Desert Tan, Grey, Red, Tractor Orange, White
Warranty
Axle Warranty: 5-Year Axle Warranty
Trailer Warranty: Three (3) Year Frame/One (1) Year Limited Warranty
Tongue
Coupler
Standard Coupler: BP 2-5/16" Adjustable
Jacks
Front Jack: 7,000# Top Wind Drop Leg Jack
Tongue
Type: 6" Channel Tongue
Stake Pockets 6 Welded on
Safety System
Safety Chains: 5/16" Grade 70 Safety Chain w/Clevis hook (2 each)
Breakaway System: Electric Breakaway System w/ Charger
Reflective Tape: 3M Dot Compliant Reflective Tape
Chassis
Deck
Flooring: 2" Treated Pine Lumber Deck
Height: 25"
Deck Width: 83"
Inside Fender Width: 83"
Stake Pockets: 6-5/8" x 1-1/2" (ID) Stake Pockets
Fenders: 9" x 72" Treadplate Aluminum Fenders
Frame
Type: Channel Frame
Size: 6"
Crossmembers
Size: 3"
Type: Channel
Spacing: 16"
Rear
Tail: Dovetail
Ramps: 5' stand up
Running Gear
Tires
Type: Radial Tires
Size: ST235/80R16
Ply: 10 ply
Rating: 3,520 lbs.
Rims: 16" Black Mod Wheels
Spare Tire: Spare Tire Mount
Suspension
Axle Type: Spring
Axle Count: 2
Axle Rating: 7,000 lb.
Brakes: Electric
Suspension Type: 6-Leaf Slipper Spring Suspension
Axle Warranty: 5-Year Axle Warranty
Electrical & Lighting
Battery & Charging
Wiring Harness: All-Weather Wiring Harness (7-way RV)
Lighting
| Model | Pull Type | GVWR | Empty Weight | Payload Capacity | Deck Length | Deck Width | Tongue Length |
| ----- | --------- | ---- | ------------ | ---------------- | ----------- | ---------- | ------------- |
| CD (18') | Bumperpull | 14000 lbs | 2620 lbs | 11380 lbs | 18 | 83" | 4' 7" (55") |
| CD (20') | Bumperpull | 14000 lbs | 2820 lbs | 11180 lbs | 20 | 83" | 4' 7" (55") |
| CD (22') | Bumperpull | 14000 lbs | 3020 lbs | 10980 lbs | 22 | 83" | 4' 7" (55") |
Coupler Options
BP 2 5/16" Adjustable (14,000 lb.) *
3" Pintle Eye - Channel-mount (20,000 lb.)
Axle Options
92BS 7,000# w/14 Ply LR-G Tires Electric / Spring
[-GV09] 9,900 G.V.W.R.
Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact us with the VIN of the trailer in question.
