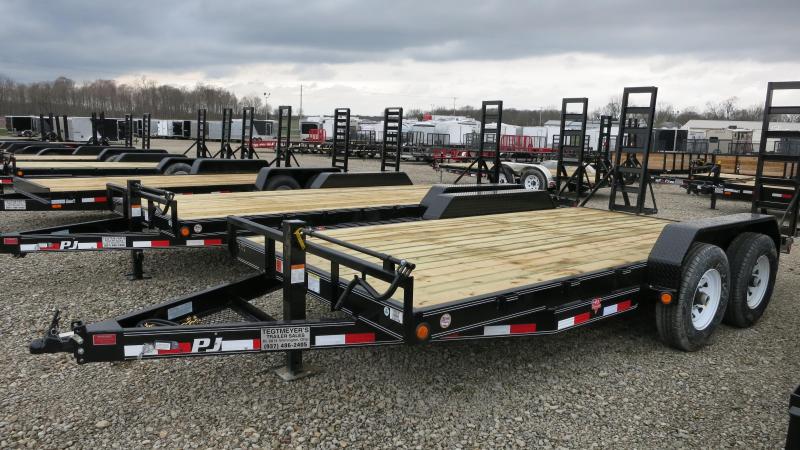

PJ Trailers 16' Flatbed with stand up ramps

Description

The 16' PJ Tandem Axle Flatbed Trailer has treated wood floor, 2' dovetail, 2 brakes, 6" channel construction, adjustable coupler, extra wide, stand up ramps and powder coat paint. The trailer as 14,000 GVW and is black in color.
INTERNET PRICES ARE CASH OR OHIO CHECK
Standard Features:
* 14,000 lb. G.V.W.R.
* 7,000 lb. x 2 G.A.W.R.
* 2 5/16" Ball Adjustable Coupler
* Safety Chains
* 1 - Drop Leg Jack (10,000 lb.)
* 2 - Posi-lube Brake Axles (7,000 lb.)
* 6 Leaf Slipper Spring Suspension
* 4 - 16" White Spoke Wheels
* 4 - 235/80R16 Radial Tires (3,520 lb.)
* Stake Pockets
* Electric Breakaway Kit w/ Charger
* 9" x 72" Treadplate Removable Steel Fenders
* 5' Channel Ramps w/ Holder
* Rear Trailer Support Jacks
* Front Toolbox (GN Only)
* 6" Channel Frame & Tongue
* 3" Channel Crossmembers 16" on Center
* 2" Treated Pine Lumber Deck
* 83" Wide Deck (80" w/ Torsion or Drop Axles)
* DOT Approved Flushmount Lifetime LED Lights
* Sealed Wire Harness w/ 7-Way RV Plug
* Sand Blasted, Acid Washed, Powder Coated
*
Notes:
* MAX GVWR Rating 16,000 with Correct Options *
Length Axles Est. Base Weight
16' 2 - 7000 2800 lbs / 1270 kg
18' 2 - 7000 2950 lbs / 1338 kg
20' 2 - 7000 3100 lbs / 1406 kg
22' 2 - 7000 3250 lbs / 1474 kg
24' 2 - 7000 3400 lbs / 1542 kg
Weights are estimated for base trailer only, PJ Trailers makes no guarantee regarding the accuracy of estimated weights
* Denotes Standard
Coupler Options Tail Options
BP 2 5/16" Adjustable (14,000 lb.) *
BP 2 5/16" Adjustable Rigid Mount (25,000 lb.)
GN 2 5/16" Round (30,000 lb.) w/ Toolbox
GN Load-Leveling 2 5/16" Square (30,000 lb.) & Tbx
3" Pintle Eye - Channel-mount (20,000 lb.)
GN 2 5/16" Square (30,000 lb.) w/ Toolbox
GN 2 5/16" Round (25,000 lb.) w/ Toolbox
GN 2 5/16" Square (25,000 lb.) w/ Toolbox
HD 2 5/16" Adjustable Channel Mount 3 Bolt Coupler
Axle Options
(2) 5,200# Electric / Spring
(2) 5,200# Electric / Torsion
(2) 5,200# One Electric / Spring
(2) 5,200# Elec/Hyd Drum (1,000 PSI Pump) / Spring
(3) 5,200# Elec/Hyd Disk (1,600 PSI Pump) / Drop Axle
(2) 7,000# Electric / Drop Axle
(2) 7,000# Electric / Spring *
(2) 7,000# Electric / Torsion
(2) 7,000# One Electric / Spring
(2) 7,000# Elec/Hyd Drum (1,000 PSI Pump) / Drop Axle
(2) 7,000# Elec/Hyd Drum (1,000 PSI Pump) / Spring
(2) 7,000# Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 7,000# Elec/Hyd Disk (1,600 PSI Pump) / Torsion
(2) 7,000# Oil Bath/Drum Brake / Spring
(2) 7,000# Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(3) 7,000# Electric / Spring
(3) 7,000# Electric / Torsion
(3) 7,000# Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 7,000# Dexter Electric / Spring
(2) 7,000# Dexter Electric / Torsion
(2) 7,000# Dexter Elec/Hyd Disk (1,600 PSI Pump) / Torsion
(2) 7,000# Load Range G 14ply Tires Electric / Spring
(2) 7,000# Load Range G 14ply Tires Electric / Torsion
(2) 7,000# Load Range G 14ply Tires Elec/Hyd Drum (1,000 PSI Pump) / Spring
(2) 7,000# Load Range G 14ply Tires Elec/Hyd Disk (1,600 PSI Pump) / Spring
(3) 7,000# Load Range G 14ply Tires Electric / Spring
(3) 7,000# Load Range G 14ply Tires Electric / Torsion
(3) 7,000# Load Range G 14ply Tires Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 8,000# Oil Bath Axles w / 235-80 Tires Electric / Spring
(2) 8,000# Elec/Spring w/ Single 17.5 Tires Electric / Torsion
(2) 8,000# Load Range G Tires Electric / Drop Axle
(2) 8,000# Load Range G Tires Electric / Spring
(2) 8,000# Load Range G Tires Electric / Torsion
(2) 8,000# Load Range G Tires Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(3) 8,000# Load Range G Tires Electric / Spring
Straight deck w/ 5' Slide-in Ramps *
2' Dovetail w/ 25" HD Fold-up Ramps
Straight deck w/ 25" HD Fold-up Ramps
2' Dovetail w/ 5' Slide-in Ramps
2' Dovetail w/ 5' Fold-up Ramps
Straight deck w/ 5' Fold-up Ramps
2' Dovetail w/ HD Fold-up Ramps
4' Dovetail w/ 5' Slide-in Ramps
4' Dovetail w/ 5' Fold-up Ramps
2' Dovetail w/ 3 5' Fold-up Ramps
Straight Deck w/ 4' Heavy Duty Fold-up Gate
2' Dovetail w/ 4' Heavy Duty Fold-up Gate
2' Dovetaill w/ Split Heavy Duty Gate
2' Dovetail w/ 5' Dbl Hinge Fold-up Ramps
2' Dovetail w/ 5' Rear Slide-in Ramps
4' Dovetail w/ 5' Rear Slide-in Ramps
Straight Deck w/ Rear Slide-in Ramps
Straight deck w/ HD Fold-up Ramps
4' Dovetaill w/ Split Heavy Duty Gate
4' Dovetail w/ HD Fold-up Ramps
4' Dovetail w/ 5' Dbl Hinge Fold-up Ramps
Straight deck w/ 3 5' Fold-up Ramps
4' Dovetail w/ 4' Heavy Duty Fold-up Gate
2' Dovetail w/ 3 5' Dbl Hinge Fold-up Ramps
Color Options
Black Powdercoat *
Equipment Yellow Powdercoat
Grey Powdercoat
Red Powdercoat
White Powdercoat
Other Options
3/16" Diamond Plate Steel Floor & 4 D-Rings
Fork Rack (Bumper Pull)
Single Hyd.Jack (12,000 lb.) Incl. Front Toolbox AAA
No Ramps No Ramp Pockets
2ft Expanded Metal Sides
2 3/8" Removable Pipetop w/Expanded Metal Sides
4ft Expanded Metal Sides
4ft 12ga Solid Metal Sides w/Barndoors
4ft 12ga Solid Metal Sides
22" Pipetop Rail w/12ga Solid Metal Sides
.
Cold Weather Wiring Harness (7-Way RV)
2nd Jack (Bumper Pull)
Plate for Winch
6" Taller GN Riser
Douglas Fir Lumber
AAAAA" Diamond Plate Steel Floor AAA
9,990 G.V.W.R.
Weld-On Strap Ratchets (2)
Rubrail
12"oc Crossmembers
1 Pair D-Rings
Rough Oak Floor
Drive Over Fenders
Receiver Hitch
Goodyear 14 Ply Tire (add to 14ply axle option)
2 3/8" Removable Pipetop on Siderails
Diamond Plate Running Boards
11ga Diamond Plate Steel Floor & 4 D-Rings
Front Toolbox (Bumper Pull)
102" Deck Width
Mount Only for Spare Tire
Spare Tire and Mount (Bumper Pull)
Deck on the Neck (GN Only)
Rear Trailer Support Jacks
Winch 12VDC (12,000 lb.) Incl. Front Toolbox
2-speed Jack (12,000 lb.)
HD Trailer 2x Jacks (25k lb.)
3" X 3" Removable Square Tubing Top Rail
= Most Popular Options
