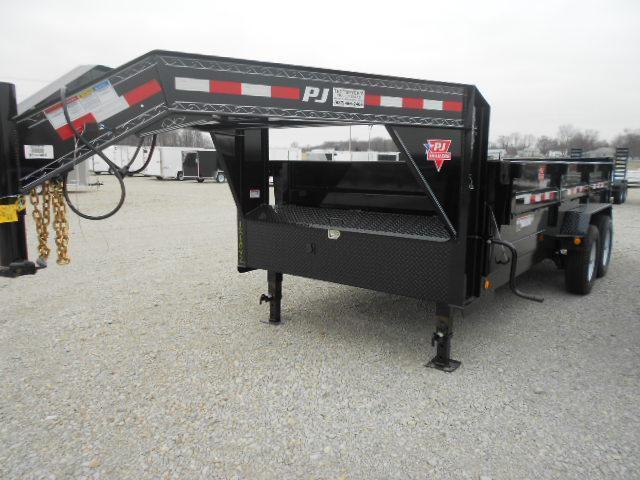

PJ Trailers 83x16 Gooseneck Dump Trailers - Low Pro - Tarp Kit

Description

PJ Trailers 83x16 Gooseneck Tandem Axle Dump Trailer is black in color. The paint is powder coated. The trailer has 2 - 7,000 lb axles. This trailer has the combo gate, Dual Jacks, Tarp kit, scissor lift and ramps.
INTERNET PRICES ARE CASH OR OHIO CHECK ONLY
Standard Features:
* 7,000 lb. x 2 G.A.W.R.
* 2 5/16" Ball Adjustable Coupler
* Safety Chains
* 1 - Drop Leg Jack (7,000 lb.)
* 2 - Posi-lube Brake Axle (5,200 lb.)
* 6 Leaf Slipper Spring Suspension
* 4 - 16" White Spoke Wheels
* 4 - 235/80R16 Radial Tires (3,520 lb.)
* Electric Breakaway Kit w/ Charger
* DOT Reflective Tape
* 1/8" Treadplate Steel Fenders
* Toolbox
* 2 - Way Gate (Barn Doors & Spread Gate)
* 6' 6" Slide In Channel Ramps
* 4 - D-Rings (Welded inside the Box)
* 40AAAAAAA Dump Pitch
* 12VDC Hydraulic Pump
* 5" x 30" Hydraulic Cylinder
* 14' Requires ScissorLift Option
* 12' Control Cable
* Mounting Brackets for Roll-up Tarp
* 6" Channel Main Frame & Tongue
* 2" x 6" x 11ga. Tubing Bed Frame
* 3" Channel Crossmembers 16" on Center
* 10ga. Steel Bed
* 83" Wide Bed
* 10ga. Steel Sides
* 24" High Sides
* DOT Approved Flushmount Lifetime LED Lights
* Sealed Wire Harness w/ 7-Way RV Plug
* Stake Pockets
* Sand Blasted, Acid Washed, Powder Coated
* Interstate (TM) Deep Cycle Battery
Notes:
10' 5.12 cu yds
12' 6.14 cu yds
14' 7.17 cu yds * MAX GVWR 16,000 with Correct Options *
Length Axles Est. Base Weight
10' 2 - 5200 3620 lbs / 1642 kg
10'
Gooseneck 2 - 5200 4220 lbs / 1914 kg
12'
Gooseneck 2 - 5200 4420 lbs / 2005 kg
12' 2 - 5200 3820 lbs / 1733 kg
14' 2 - 5200 4020 lbs / 1823 kg
14'
Scissor 2 - 7000 4380 lbs / 1987 kg
14'
Gooseneck / Scissor 2 - 7000 4960 lbs / 2250 kg
Weights are estimated for base trailer only, PJ Trailers makes no guarantee regarding the accuracy of estimated weights
* Denotes Standard
Coupler Options Tail Options
BP 2 5/16" Adjustable (14,000 lb.) *
BP 2 5/16" Adjustable Rigid Mount (25,000 lb.)
GN Load-Leveling 2 5/16" Square (30,000 lb.)
3" Pintle Eye - Channel-mount (20,000 lb.)
GN 2 5/16" Round (25,000 lb.)
GN 2 5/16" Square (25,000 lb.)
HD 2 5/16" Adjustable Channel Mount 3 Bolt Coupler
Axle Options
(2) 5,200# Electric / Spring *
(2) 5,200# Elec/Hyd Drum (1,000 PSI Pump) / Spring
(2) 5,200# Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 5,200# Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 7,000# Electric / Spring
(2) 7,000# Elec/Hyd Drum (1,000 PSI Pump) / Spring
(2) 7,000# Elec/Hyd Disk (1,600 PSI Pump) / Spring
(2) 7,000# Surge Disk / Spring
(2) 7,000# Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 7,000# Dexter Electric / Spring
(2) 7,000# Load Range G 14ply Tires Electric / Spring
(2) 7,000# Load Range G 14ply Tires Elec/Hyd Disk (1,600 PSI Pump) / Spring
Split / Spreader Gate *
Color Options
Black Powdercoat *
Equipment Yellow Powdercoat
Grey Powdercoat
Red Powdercoat
White Powdercoat
Other Options
Rate at 9900 GVWR
Cold Weather Wiring Harness (7-Way RV)
2nd Jack & Toolbox (GN Only)
10k Jack (Bumper Pull)
Solar Battery Charger
6" Taller GN Riser
9,990 G.V.W.R.
Battery Charger 12V
Tarp Mounting Bracket
12"oc Crossmembers
1 Extra Pair of D-Rings
Power Up/Down & Gravity Down Upgrade
HD 24" Side Extensions 10ga
Mount Only for Spare Tire
Tarp kit 18ft x 84 inchs (Pull Bar)
Scissor Lift
Spare Tire and Mount (Bumper Pull)
Deck on the Neck (GN Only)
24" Side Extensions (Expanded Metal)
2-speed Jack (12,000 lb.)
24" Side Extensions (Solid)
Grain Chute
= Most Popular Options
