PJ Trailers 7x14 Utility Trailers w/ Dove & HD Gate

Description

u8: 83" Sngl Axle Channel Utility
2: BP 2" A-Frame
14: 14ft
31ds: 1 - 3,500# (Dexter) Idler / Spring
7: Dovetail w/4' Heavy Duty Fold Up Gate (No ramp Legs)
k: Black Powder Coat

INTERNET PRICES ARE CASH OR OHIO CHECK.
Internet price does not include credit card use or financing.

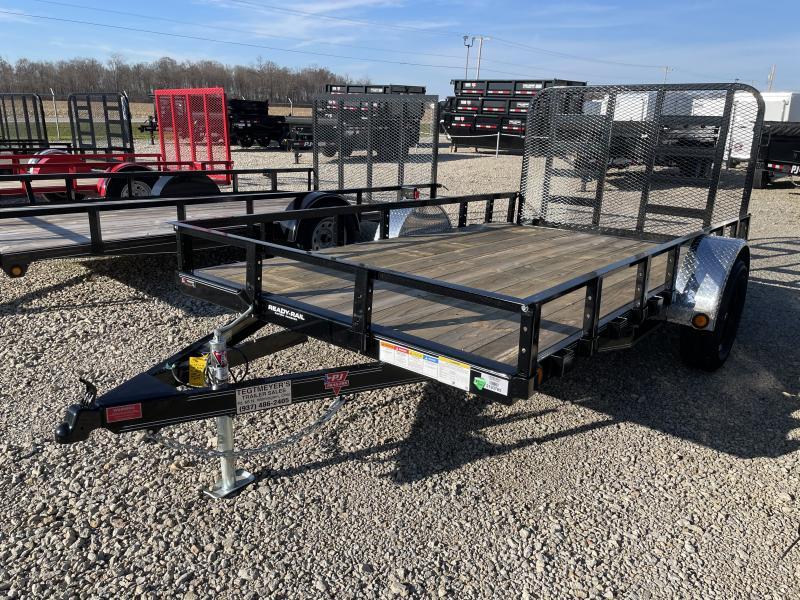

While we strive to represent our trailers with accuracy, the picture may not be the exact trailer shown. The picture could be a stock photo without the exact options. Please call to confirm details of the trailer.

Standard Features
2,990 G.V.W.R.
3,500 x 1 G.A.W.R.
2" Ball Coupler
Safety Chains
1 - Pipe Mount Swivel Jack (2,000 lb.)
1 - Dexter E- Z lube Idler Axle (3,500 lb.)
4 Leaf Double-eye Spring Suspension
2 - NEW 15" Black Wheels
2 - Provider ST205/75R15 Radial Tires (1,820 lb.)
Stake Pockets
9" x 33" Treadplate Removable Aluminum Fenders
4" Channel Frame & Tongue
2 1/2" x 2 1/2" x 3/16" Angle Crossmembers
2" x 2" Removable Side Rail
2" x 2" Top Rail 2" Treated Pine Lumber Deck
77" Wide Deck DOT Approved Flushmount Lights
Sealed Wire Harness
Sand Blasted, Acid Washed, Powder Coated

Notes: 16' and up must be tandem axle ** MAX GVWR 10,000 with Correct Options ** Drop and Torsion Axle options will come with Steel Fender


Length Axles Est. Base Weight
10' 1 - 3500 980 lbs / 445 kg
12' 1 - 3500 1060 lbs / 481 kg
14' 1 - 3500 1180 lbs / 535 kg
14' 2 - 3500 1400 lbs / 635 kg
16' 2 - 3500 1520 lbs / 689 kg

Weights are estimated for base trailer only, PJ Trailers makes no guarantee regarding the accuracy of estimated weights


Options - Denotes Standard
Coupler Options
BP 2" A-Frame *
BP 2 5/16" A-Frame
BP 2 5/16" Adjustable
BP 2" Atwood Style A-Frame Coupler
BP 2 5/16" Atwood Style A-Frame Coupler 3" Pintle Eye - Channel-mount

Axle Options
(1) 3,500# (Dexter) Idler / Drop Axle
(1) 3,500# (Dexter) Idler / Spring *
(1) 3,500# (Dexter) Idler / Torsion
(1) 3,500# (Dexter) Electric / Drop Axle
(1) 3,500# (Dexter) Electric / Spring
(1) 3,500# (Dexter) Electric / Torsion
(1) 3,500# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 3,500# (Dexter) One Electric / Spring
(2) 3,500# (Dexter) Idler / Spring
(2) 3,500# (Dexter) Electric / Drop Axle
(2) 3,500# (Dexter) Electric / Spring
(2) 3,500# (Dexter) Electric / Torsion
(2) 3,500# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) / Spring
(2) 3,500# (Dexter) Surge/ Hyd. Drum w/ Surge Coupler 1 Brake 1 Drag / Spring
(2) 3,500# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(1) 5,200# (Dexter) Idler / Spring (1) 5,200# (Dexter) Electric / Drop Axle
(1) 5,200# (Dexter) Electric / Spring (1) 5,200# (Dexter) Electric / Torsion
(1) 5,200# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 5,200# (Dexter) One Electric / Spring
(2) 5,200# (Dexter) Electric / Spring

Tail Options
[S] Straight Deck *
[2] 2' Dovetail w/ 5' Slide-in Ramps
[4] 4' Dovetail w/ 5' Slide-in Ramps
[A] 2' Dovetail w/ 2 Fold-up Ramps
[B] 2' Dovetail w/ 4' Fold-up Gate
[C] Straight Deck w/ 2 Fold-up Ramps
[D] 4' Dovetail w/ 2 Fold-up Ramps
[F] Straight Deck with Fold In Gate
[G] Straight Deck w/ 4' Fold-up Gate
[H] Straight Deck w/ 4' Heavy Duty Fold-up Gate
[J] 2' Dovetail w/ 4' Heavy Duty Fold-up Gate
[K] Straight Deck w/ Bi-Fold Gate
[M] 2' Dovetail w/ Bi-Fold Gate
[N] 4' Dovetail w/ Bi-Fold Gate
[R] Straight Deck w/ 5' Slide-in Ramps
[T] Tilt Deck (Single Axle Only)
[U] Straight Deck w/ Split Gate
[X] 2' Dovetail w/ Split Heavy Duty Gate

Color Options Code Color
[K] Black Powdercoat *
[Y] Equipment Yellow Powdercoat
[G] Grey Powdercoat
[R] Red Powdercoat
[B] Regatta Blue Powdercoat
[J] Tractor Green Powdercoat
[W] White Powdercoat

Other Options View our options page
[-BWFL] Blackwood Lumber Full Deck
[-BWOT] Blackwood Lumber Outer Deck
[-GT10] Ramp Gate Transition Lip
[-TB01] Front Toolbox (with 7k Jack)
[-TW05] Upgrade to 235/80 R16 on 5.2 Axles
[-WP01] Plate for Winch
[-WR01] Trimmer Rack Kit
[2] 2ft Expanded Metal Sides
[3] Upgrade to 225/75 R15 on 3.5k Axles
[4] 4ft Expanded Metal Sides
[5] Regular Sides w/Solid Metal
[6] Regular Sides w/Expanded Metal
[7] Upgrade to 7k Jack
[8] 2 Stake Pockets In Front of Trailer
[A] Side Mount ATV Ramps (12ft or Longer)
[B] 4ft Solid Metal Sides
[C] Landscape Toolbox ( must have 2ft or 4ft Sides)
[D] 1 Pair D-Rings
[F] Steel Diamond Plate Fenders
[G] 4ft Side Gate (14ft or longer)
[J] LED Lights Upgrade
[M] Expanded Metal Floor
[P] 2" Pipetop Removable Siderails
[Q] Rubrail
[S] Steel Floor w/ 4 D-Rings
[T] Mount Only for Spare Tire
[U] Rear Trailer Support Jacks
[V] Spare Tire and Mount
[W] 12" oc Crossmembers
[X] 16"oc Crossmembers
[Z] 22" Solid Metal Sides w/ 2" pipe-top

= Most Popular Options
Accessories- Stake Pocket D-rings- Stake Pocket Spare Tire Mount
77" Channel Utility (U7)

Parts Guide Model Part Description Category Part Number
U7 3,500# Idler / Spring (Axle Idler 35550I-ST-EZ 89x74) AXLE 110106
U7 Reflector Tape, Conspicuity R&W BODY 170237
U7 Rear Bumper U7 w/ Rampgate Hinges BODY 160226
U7 Rear Bumper U7 w/o Gate BODY 160227
U7 Coupler, 2" A-Frame Bulldog COUPLER 140200
U7 Mounting kit for U6, U7 or U8 gate GATE 160267
U7 Gate 1' side for U7 77'' Black GATE 160272
U7 Bracket Weld-on 5/16" Safety Chain HARDWARE 180410
U7 Jack, 5K Pipe Mount 15" Topwind JACK 140100
U7 Rear Support Jack (Option) JACK 140100
U7 Tailight, 6" Oval, Red Sealed LIGHTING 170205
U7 Ramp 3" Chnl 13"x60" C5&C6 -Semin (Slide-in Ramps) RAMPS 160273 U7 Spring Dbl.eye 4 leaf 1750# SUSPENSION 120100
U7 Equalizer 3.5K Triangle Double Eye SUSPENSION 120217
U7 Equalizer 7K QRG (12") (5200 lb axles) SUSPENSION 120216
U7 U-Bolt Kit 2-3/8" Round (for 3.5k) SUSPENSION 120300
U7 U-Bolt Kit 3" Rd. for 5.2-7K (5200 lb axles) SUSPENSION 120301
U7 Spring Slipper 6 leaf 4000# 7/8K (5200 lb axles) SUSPENSION 120102 U7 Hanger for Front Single Axle 3.5K SUSPENSION 120142
U7 Hanger for Rear Single Axle 3.5K SUSPENSION 120143
U7 Hanger 2-Axle 3.5K, Frt, Ctr, Rear SUSPENSION 120145
U7 Hanger Front 7K Slipper (5200 lb axles) SUSPENSION 120116
U7 Hanger Center 7K Slipper (5200 lb axles) SUSPENSION 120115
U7 Hanger Rear 7K Slipper (5200 lb axles) SUSPENSION 120117
U7 Hanger Kit 1-Axle Dble Eye 3.5-52K SUSPENSION 120111
U7 Hanger Kit 2-Axle Dbl Eye 3.5 -52K SUSPENSION 120110
U7 Hanger Kt Tandem Axle Slipper 52/7k (5200 lb axles) SUSPENSION 120112
U7 Bolt, Hanger 9/16x3.5" Slipper 7K (with 5.2k axles) SUSPENSION 120118
U7 Bolt Equal'r 7/8"x4.75" Slipper 7K (with 5.2k axles) SUSPENSION 120119
U7 Lock Nut for 7K Eq Bolt 7/8" (with 5.2k axles) SUSPENSION 120218
U7 Lock Nut for hanger bolt 9/16" SUSPENSION 120311
U7 Hanger Bolt 3"x9/16" - 18 SUSPENSION 120141
U7 Tire ST205/75R15 Radial LR-C TIRE 130101
U7 Tire&Whl 205/75R15 on 550 white spk (3500 lb axle) TIRE & WHEEL 130200
U7 15" white spoke Wheels w/ 5 on 5" (3500 lb axle) WHEEL 130300

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact us with the VIN of the trailer in question.
