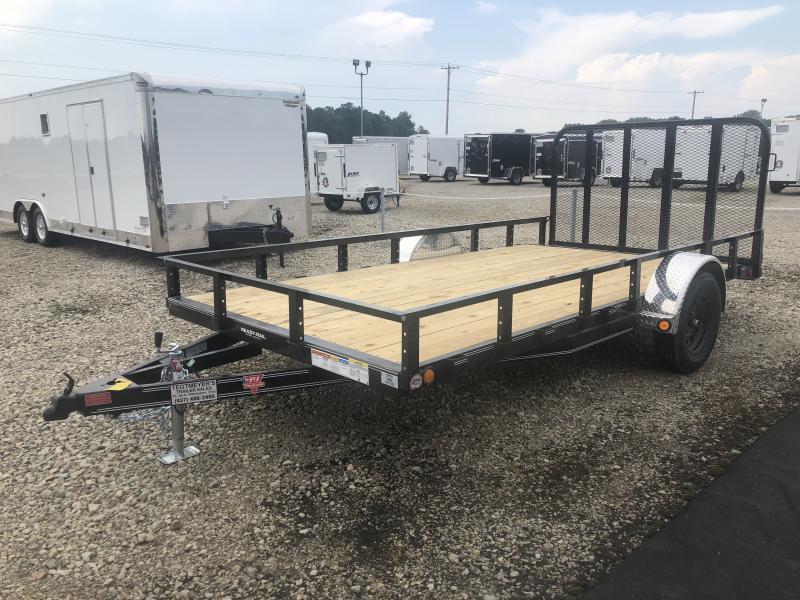

PJ Trailers 7x14 Utility Trailers w/ Gate

Description

u8: 83" Single Axle Channel Utility
2: BP 2" A-Frame
14: 14ft
31ds: 1 - 3,500# (Dexter) Idler / Spring
b: Dovetail w/ 4' Fold-up Gate
k: black Powder Coat

While we strive to represent our trailers with 100% accuracy - please call to confirm details of trailer.

Internet prices are cash or Ohio check only,

Standard features

2,990 G.V.W.R. 3,500 x 1 G.A.W.R.
2" Ball Coupler
Safety Chains
1 - Pipe Mount Swivel Jack (2,000 lb.)
1 - Dexter E- Z lube Idler Axle (3,500 lb.)
4 Leaf Double-eye Spring Suspension
2 - NEW 15" Black Mod Wheels
2 - Provider ST205/75R15 Radial Tires (1,820 lb.)
Stake Pockets
9" x 33" Treadplate Removable Aluminum Fenders
4" Channel Frame & Tongue
2 1/2" x 2 1/2" x 3/16" Angle
Crossmembers 2" x 2"
Removable Side Rail 2" x 2"
Top Rail 2"
Treated Pine Lumber Deck 83" Wide Deck
DOT Approved Flushmount Lights
Sealed Wire Harness
Sand Blasted, Acid Washed, Powder Coated

Notes: 16' and up must be tandem axle 2 5,200 lb axle option on 16' and up 2 5,200 lb axle must order 16" oc Option ** MAX GVWR 10,000 with Correct Options ** Drop and Torsion Axle options will come with Steel Fender

Length Axles Est. Base Weight
10' 1 - 3500 1000 lbs / 454 kg
12' 1 - 3500 1100 lbs / 494 kg
14' 1 - 3500 1240 lbs / 562 kg
14' 2 - 3500 1480 lbs / 671 kg
16' 2 - 3500 1540 lbs / 699 kg
18' 2 - 3500 1740 lbs / 789 kg

Weights are estimated for base trailer only, PJ Trailers makes no guarantee regarding the accuracy of estimated weights


Options - Denotes Standard
Coupler Options
BP 2" A-Frame *
BP 2 5/16" A-Frame
BP 2 5/16" Adjustable
BP 2" Atwood Style A-Frame Coupler
BP 2 5/16" Atwood Style A-Frame Coupler
3" Pintle Eye - Channel-mount
Axle Options
(1) 3,500# (Dexter) Idler / Drop Axle
(1) 3,500# (Dexter) Idler / Spring *
(1) 3,500# (Dexter) Idler / Torsion
(1) 3,500# (Dexter) Electric / Drop Axle
(1) 3,500# (Dexter) Electric / Spring
(1) 3,500# (Dexter) Electric / Torsion
(1) 3,500# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 3,500# (Dexter) One Electric / Spring
(2) 3,500# (Dexter) Idler / Spring
(2) 3,500# (Dexter) Electric / Drop Axle
(2) 3,500# (Dexter) Electric / Spring
(2) 3,500# (Dexter) Electric / Torsion
(2) 3,500# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) / Spring
(2) 3,500# (Dexter) Surge/ Hyd. Drum w/ Surge Coupler 1 Brake 1 Drag / Spring
(2) 3,500# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(1) 5,200# (Dexter) Idler / Spring
(1) 5,200# (Dexter) Electric / Drop Axle
(1) 5,200# (Dexter) Electric / Spring
(1) 5,200# (Dexter) Electric / Torsion
(1) 5,200# (Dexter) Surge/ Hydraulic Drum w/ Surge Coupler / Spring
(2) 5,200# (Dexter) One Electric / Spring
(2) 5,200# (Dexter) Electric / Spring
[S] Straight Deck *
[2] 2' Dovetail w/ 5' Slide-in Ramps
[4] 4' Dovetail w/ 5' Slide-in Ramps
[A] 2' Dovetail w/ 2 Fold-up Ramps
[B] 2' Dovetail w/ 4' Fold-up Gate
[C] Straight Deck w/ 2 Fold-up Ramps
[D] 4' Dovetail w/ 2 Fold-up Ramps
[F] Straight Deck with Fold In Gate
[G] Straight Deck w/ 4' Fold-up Gate
[H] Straight Deck w/ 4' Heavy Duty Fold-up Gate
[J] 2' Dovetail w/ 4' Heavy Duty Fold-up Gate
[K] Straight Deck w/ Bi-Fold Gate
[M] 2' Dovetail w/ Bi-Fold Gate
[N] 4' Dovetail w/ Bi-Fold Gate
[R] Straight Deck w/ 5' Slide-in Ramps
[T] Tilt Deck (Single Axle Only)
[U] Straight Deck w/ Split Gate
[X] 2' Dovetail w/ Split Heavy Duty Gate

Color Options

Code Color
[K] Black Powdercoat *
[Y] Equipment Yellow Powdercoat
[G] Grey Powdercoat
[R] Red Powdercoat
[B] Regatta Blue Powdercoat
[J] Tractor Green Powdercoat
[W] White Powdercoat

Other Options View our options page
[-BWFL] Blackwood Lumber Full Deck
[-BWOT] Blackwood Lumber Outer Deck
[-GT10] Ramp Gate Transition Lip
[-TB01] Front Toolbox (with 7k Jack)
[-TW05] Upgrade to 235/80 R16 on 5.2 Axles
[-WP01] Plate for Winch
[-WR01] Trimmer Rack Kit
[2] 2ft Expanded Metal Sides
[3] Upgrade to 225/75 R15 on 3.5k Axles
[4] 4ft Expanded Metal Sides
[5] Regular Sides w/Solid Metal
[6] Regular Sides w/Expanded Metal
[7] Upgrade to 7k Jack
[8] 2 Stake Pockets In Front of Trailer
[A] Side Mount ATV Ramps (12ft or Longer)
[B] 4ft Solid Metal Sides
[C] Landscape Toolbox ( must have 2ft or 4ft Sides)
[D] 1 Pair D-Rings
[F] Steel Diamond Plate Fenders
[G] 4ft Side Gate (14ft or longer)
[J] LED Lights Upgrade
[M] Expanded Metal Floor
[P] 2" Pipetop Removable Siderails
[Q] Rubrail
[S] Steel Floor w/ 4 D-Rings
[T] MountOnly for Spare Tire
[U] Rear Trailer Support Jacks
[V] Spare Tire and Mount
[W] 12" oc Crossmembers
[X] 16"oc Crossmembers
[Z] 22" Solid Metal Sides w/ 2" pipe-top = Most Popular Options

Accessories-
Stake Pocket D-rings-
Stake Pocket Spare Tire Mount

83" Channel Utility (U8) Parts Guide

Model Part Description Category Part Number
U8 3,500# Idler / Spring (Axle Idler 35550 I-ST-EZ 95x80) AXLE 110104
U8 Reflector Tape, Conspicuity R&W BODY 170237
U8 Rear Bumper U8 w/ Ramp gate Hinges BODY 160224
U8 Front Rail for U8 w/ ATV Ramps BODY 160654
U8 RH Side Rail for U8 w/ ATV Ramps BODY 160655
U8 LH Side Rail for U8 w/ ATV Ramps BODY 160656
U8 Coupler, 2" A-Frame Bulldog COUPLER 140200
U8 Gate Assy Heavy Duty U8 83'' Black GATE 160268
U8 Mounting kit for U6, U7 or U8 gate GATE 160267
U8 Gate 1' side for U8 83'' Black GATE 160266
U8 Bracket Weld-on 5/16" Safety Chain HARDWARE 180410
U8 Rear Support Jack (Option) JACK 140100
U8 Jack, 5K Pipe Mount 15" Top wind JACK 140100
U8 Tailight, 6" Oval, Red Sealed LIGHTING 170205
U8 Ramp 3" Chnl 13"x60" C5&C6 -Semin (Slide-in Ramps) RAMPS 160273 U8 Spring Dbl.eye 4 leaf 1750# SUSPENSION 120100
U8 Equalizer 3.5K Triangle Double Eye SUSPENSION 120217
U8 Equalizer 7K QRG (12") (5200 lb axles) SUSPENSION 120216
U8 U-Bolt Kit 2-3/8" Round (for 3.5k) SUSPENSION 120300
U8 U-Bolt Kit 3" Rd. for 5.2-7K (5200 lb axles) SUSPENSION 120301
U8 Spring Slipper 6 leaf 4000# 7/8K (5200 lb axles) SUSPENSION 120102 U8 Hanger for Front Single Axle 3.5K SUSPENSION 120142
U8 Hanger for Rear Single Axle 3.5K SUSPENSION 120143
U8 Hanger 2-Axle 3.5K, Frt, Ctr, Rear SUSPENSION 120145
U8 Hanger Front 7K Slipper (5200 lb axles) SUSPENSION 120116
U8 Hanger Center 7K Slipper (5200 lb axles) SUSPENSION 120115
U8 Hanger Rear 7K Slipper (5200 lb axles) SUSPENSION 120117
U8 Hanger Kit 1-Axle Dble Eye 3.5-52K SUSPENSION 120111
U8 Hanger Kit 2-Axle Dbl Eye 3.5 -52K SUSPENSION 120110
U8 Hanger Kt Tandem Axle Slipper 52/7k (5200 lb axles) SUSPENSION 120112
U8 Bolt, Hanger 9/16x3.5" Slipper 7K (with 5.2k axles) SUSPENSION 120118
U8 Bolt Equal'r 7/8"x4.75" Slipper 7K (with 5.2k axles) SUSPENSION 120119
U8 Lock Nut for 7K Eq Bolt 7/8" (with 5.2k axles) SUSPENSION 120218
U8 Lock Nut for hanger bolt 9/16" SUSPENSION 120311
U8 Hanger Bolt 3"x9/16" - 18 SUSPENSION 120141
U8 Tire ST205/75R15 Radial LR-C TIRE 130101
U8 Tire&Whl 205/75R15 on 550 white spk (3500 lb axle) TIRE & WHEEL 130200
U8 15" white spoke Wheels w/ 5 on 5" (3500 lb axle) WHEEL 130300

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact us with the VIN of the trailer in question.
