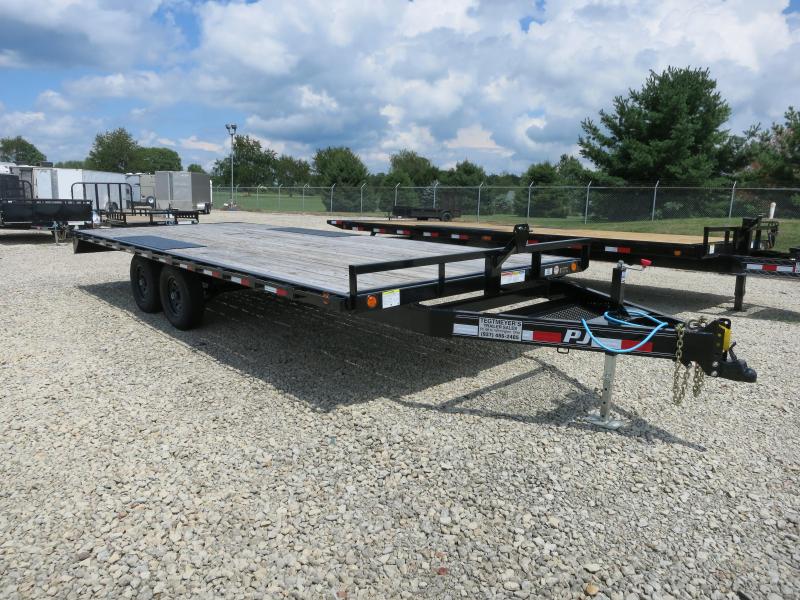

PJ Trailers 20' Flatbed Deckover 6" Channel Trailer

Description

l6: Med. Duty Deckover 6" Channel
j: BP 2 5/16" Adjustable (14,000 lb.)
20: 20ft
52bs: 2 - 5,200# (Dexter) Electric / Spring
s: Straight Deck w/24x 6 ft Slide-in Ramps Exp Metal
k: Black Powder Coat
m: Mount Only for Spare Tire

While we strive to represent our trailers with 100% accuracy - please call to confirm details of trailer.

ONLINE PRICES ARE CASH OR CHECK ONLY.

Standard Features

9,990 lb. G.V.W.R.
5,200 lb. x 2 G.A.W.R.
Adjustable 2 5/16"
Ball Bulldog Coupler

Safety Chains

1 - Drop Leg Jack (7,000 lb.)

2 - Dexter E- Z lube Brake Axles (5,200 lb.)
6 Leaf Slipper Spring Suspension

4 - 15" White Black Wheels

4 Provider 225/75R15 Radial Tires
Rubrail & Stake Pockets
Electric Breakaway Kit w/ Charger
DOT Reflective Tape

Tool Tray In Tongue
6' Slide in Ramps w/ Holders

6" Channel Tongue

6" Channel Frame Main Frame

3x2" Angle Crossmembers
16" on Center
2" Treated Pine Lumber Deck
101" Wide Deck
DOT Approved Flushmount Lifetime LED Lights

Sealed Bargman Wire Harness w/ 7-Way RV Plug
Sand Blasted, Acid Washed, Powder Coated
Notes:
** MAX GVWR 10,400 **
Bumperpull Tongue Length (5' 7")

Accessories
Stake Pocket D-rings
Stake Pocket Spare Tire Mount

Estimated Weights
Length Axle Est. Base Weight
16' 2 x 5,200 lbs 2,820 lbs / 1,279 kg

18' 2 x 5,200 lbs 2,980 lbs / 1,352 kg
20' 2 x 5,200 lbs 3,020 lbs / 1,370 kg

Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.



Coupler Options
[J] BP 2 5/16" Adjustable (14,000 lb.)
[P] 3" Pintle Eye - Channel-mount (20,000 lb.)

Axle Options
52BS 5,200# (Dexter) Electric

52BT 5,200# (Dexter) Electric
52KS 5,200# (Dexter) Surge Disc [Surge Coupler]
52SS 5,200# (Dexter) Surge Hydraulic Drum [Surge Coupler]
71BS 7,000# (Dexter) Electric

Tail Options
[S] Straight Deck w/24x 6 ft Slide-in Ramps Exp Metal
[A] 3' Dovetail w/24x 6 ft Slide-in Ramps Exp Metal

[B] 3' Dovetail w/ 2, 16"x60" Foldup Ramps
[C] 3' Dovetail w/ 3, 16"x60" Foldup Ramps
[D] 3' Dovetail w/ 2, 31"x66"HD Foldup Ramps
[J] 3" Dovetail w/ 4' Heavy Duty Fold-up Gate

[V] 3' Dovetaill w/ Split Heavy Duty Gate

Color Options
[K] Black Powder Coat
[0] Primer + Black Powder Coat (Texas Only)
[1] Primer + Red Powder Coat (Texas Only)
[2] Primer + Tractor Green Powder Coat (Texas Only)

[3] Primer + White Powder Coat (Texas Only)

[4] Primer + Equipment Yellow Powder Coat (Texas Only)
[5] Primer + Tractor Orange Powder Coat (Texas only)
[6] Primer + Grey Powder Coat (Texas only)
[8] Primer + Desert Tan (Texas Only)
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only (Texas Only)
[R] Red Powder Coat
[T] Desert Tan

[W] White Powder Coat

[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer (Texas Only)

Other Options
[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-DR01] 1 Pair D-Rings
[-EL01] Add 7-Way RV Plug to Rear Bumper
[0] Cold Weather Wiring Harness (7-Way RV)
[2] Upgrade to 2 X 10k Jacks
[3] 10k Jack (Bumper Pull)
[4] " DP Steel Floor w/4 Flushmount D-Rings & 12"oc
[6] Upgrade to 235/80 R16 on 52k Axles w /1" Spacer
[7] Douglas Fir Lumber
[C] 12"oc Crossmembers
[E] Rough Oak Floo
r
[K] 4" Ratchets every 4ft w/ Slide Track

[M] Mount Only for Spare Tire
[N] 2 3/8" Removable Pipetop
[P] 11ga(1/8")DP Steel Floor w/4 Flushmount D-Rings & 12"oc
[Q] Front Toolbox (Bumper Pull)
[T] Spare Tire and Mount (Bumper Pull)
[V] V Shape Front Deck

Parts Guide
Model Part Description Category Part Number
L6 5,200# Electric / Spring
(Axle Brake 52655E-ST-EZ 73x58) AXLE 110112
L6 Reflector Tape, Conspicuity R&W BODY 170237
L6 Coupler,14K 2-5/16" Adj. BULLDOG COUPLER 140201
L6 Tailight 6" Oval LED Red Sealed
(Dovetail) ELECTRICAL & LIGHTS 170216
L6 Bracket Weld-on 5/16" Safety Chain HARDWARE 180410
L6 Jack, 7K Dropleg Square Topwind JACK 140101
L6 Tailight 4" Round LED Red Sealed
(Straight Deck) LIGHTING 170214
L6 Ramp, Tubing 24"x 72" L5
(Straight deck) RAMPS 160208
L6 Bolt Equal'r 7/8"x 4.75" Slipper 7K SUSPENSION 120119
L6 Bolt, Hanger 9/16x3.5" Slipper 7K SUSPENSION 120118

L6 Equalizer 7K QRG (12") SUSPENSION 120216

L6 Hanger Center 7K Slipper SUSPENSION 120115
L6 Hanger Front 7K Slipper SUSPENSION 120116

L6 Hanger Kt Tandem Axle Slipper 52/7k SUSPENSION 12011
L6 Hanger Rear 7K Slipper SUSPENSION 120117

L6 Lock Nut for 7K Eq Bolt 7/8" SUSPENSION 120218
L6 Lock Nut for hanger bolt 9/16" SUSPENSION 120311
L6 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
L6 U-Bolt Kit 3" Rd. for 5.2-7K SUSPENSION 120301

L6 225/75R15 Radial Tires TIRE 130107

L6 15" white spoke Wheel w/ 6 on 5.5"
(5200 lb axle) TIRES & WHEELS 130301
L6 Tire& Whl 225/75R15 6 on 5.5" white spk TIRES & WHEELS 130224
