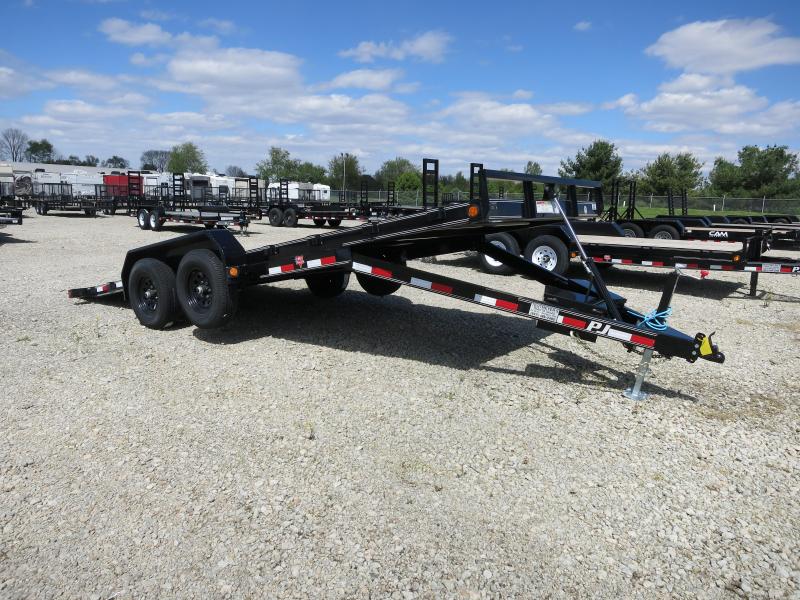

PJ Trailers 20' Equipment Trailer - Quick Power Tilt

Description

th: 83" Hydraulic Quick Tilt
j: BP 2 5/16" Adjustable
20: 20ft
52es: 2 - 5,200# (Dexter) Electric / Spring
t: Tilt Deck
k: Black Powder Coat
While we strive to represent our trailers with 100% accuracy - please call to confirm details of trailer.

ONLINE PRICES ARE CASH OR OHIO CHECK ONLY

Standard Features
7,000 lb. G.V.W.R.
3,500 lb. x 2 G.A.W.R.
Adjustable 2 5/16" Ball Bulldog Coupler
Safety Chains
1 - Top Wind Drop-Leg Jack (8,000 lb.)
2 Dexter E-Z lube Axles, Idler & Brake (3,500 lb)
4 Leaf Double-eye Spring Suspension
4 - 15" BLACK Spoke Wheels
4 Provider ST205/75R15 Radial Tires (1,820 lb)
Electric Breakaway Kit w/ Charger
9" x 72" Treadplate Aluminum Fenders
5" Channel Frame & Tongue
3" Channel Crossmembers 16" on Center
2" Treated Pine Lumber Deck
83" Wide Deck
DOT Approved Flushmount Lifetime LED Lights
Sealed Wire Harness
Sand Blasted, Acid Washed, Powder Coated
Hydraulic Power Up & Down
110V Battery Charger
Stake Pockets
Notes:
16' Trailer Must Have Drop Axles
** MAX GVWR 10,400 with 5200 lb Axle Option **
Trailer will have 80" Frame with Drop Axles Bumperpull Tongue Length (4' 3")
Estimated Weights
Length Axles Est. Base Weight
16' 2 x 7,000 lbs 2,170 lbs / 984 kg
18' 2 x 7,000 lbs 2,270 lbs / 1,030 kg
20' 2 x 7,000 lbs 2,370 lbs / 1,075 kg
Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.
Options
Default options, those included in the base model, are marked by a check .
Coupler Options
[J] BP 2 5/16" Adjustable
[D] BP 2" Adjustable
[P] 3" Pintle Eye - Channel-mount
Axle Options
32CD 3,500# (Dexter) One Electric
32CS 3,500# (Dexter) One Electric
32ED 3,500# (Dexter) Electric
32ES 3,500# (Dexter) Electric
52CS 5,200# (Dexter) One Electric
52ES 5,200# (Dexter) Electric
Tail Options
[T] Tilt Deck
Color Options
[K] Black Powder Coat
[B] Regatta Blue Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[R] Red Powder Coat
[T] Desert Tan
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
Other Options
[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-DR01] 1 Pair D-Rings
[4] Plate for Winch
[8] 2 Stake Pockets In Front of Trailer
[F] Steel Diamond Plate Fenders
[Q] Rubrail
[S] 11ga(1/8") DP Steel Floor w/4 Flushmount D-Rings & 16"oc
[T] Mount Only for Spare Tire
[V] Spare Tire and Mount
Parts Guide
Model Part Description Category Part Number
TH 3,500# Electric / Spring (Axle Brake 3555OE-ST-EZ 95x80) AXLE 110103
TH 3,500# Idler / Spring (Axle Idler 35550I-ST-EZ 95x80) AXLE 110104
TH Reflector Tape, Conspicuity R&W BODY 170237
TH Coupler,14K 2-5/16" Adj. BULLDOG COUPLER 140201
TH Fender Tandem 9x72 Alum DP - 15" (3500 lb axle) FENDER 160601
TH Bracket Weld-on 5/16" Safety Chain HARDWARE 180410
TH Cylinder 2 x 20 for TH Trailer HYDRAULIC 190199
TH Jack, 7K Dropleg Square Topwind JACK 140101
TH Bolt Equal'r 7/8"x4.75" Slipper 7K SUSPENSION 120119
TH Bolt, Hanger 9/16x3.5" Slipper 7K SUSPENSION 120118
TH Equalizer 3.5K Triangle Double Eye SUSPENSION 120217
TH Equalizer 7K QRG (12") SUSPENSION 120216
TH Hanger 2-Axle 3.5K, Frt, Ctr, Rear SUSPENSION 120145
TH Hanger Bolt 3"x9/16" - 18 SUSPENSION 120141
TH Hanger Center 7K Slipper SUSPENSION 120115
TH Hanger Front 7K Slipper SUSPENSION 120116
TH Hanger Kit 2-Axle Dbl Eye 3.5 -52K SUSPENSION 120110
TH Hanger Rear 7K Slipper SUSPENSION 120117
TH Lock Nut for 7K Eq Bolt 7/8" SUSPENSION 120218
TH Lock Nut for hanger bolt 9/16" SUSPENSION 120311
TH Spring Dbl.eye 4 leaf 1750# SUSPENSION 120100
TH U-Bolt Kit 2-3/8" Round (for 3.5k) SUSPENSION 120300
TH U-Bolt Kit 3" Rd. for 5.2-7K (5200 lb axles) SUSPENSION 120301
TH Tire ST205/75R15 Radial LR-C TIRE 130101
TH 15" white spoke Wheels w/ 5 on 5" (3500 lb axle) TIRES & WHEELS 130300
TH Tire&Whl 205/75R15 on 550 white spk (3500 lb axle) TIRES & WHEELS 130200
TH Toolbox TH ( Ammo Box with holes) TOOLBOX 160569
